Hotel Key Cards: Chips, Lock Compatibility and Card Materials

How a hotel key card works

A hotel key card is a passive 13.56 MHz contactless card, most commonly ISO/IEC 14443 Type A (MIFARE), with some brands using ISO/IEC 15693 or FeliCa reader heads. It has no battery; the lock's reader powers the chip through a 13.56 MHz field when the card is held within a few centimetres. At check-in the front-desk encoder writes the room number, the valid stay window and an access profile (guest, housekeeping, maintenance) into the card's memory, protected by keys that only the lock system knows.

Most hotel locks are offline. They do not talk to a server; they trust what the card carries because it was written with the right keys, and they keep their own clock to check the stay window. Online locks (wired or wireless) add remote cancellation and audit trails, but the card itself works the same way. The lock software, not the card, integrates with the property management system so that check-in and encoding are one step.

Because the memory layout and keys are defined by the lock vendor, a card is only useful if the chip and its configuration match what that vendor's encoder expects. That is why every question about hotel key cards comes back to the lock.

Choosing the chip: Classic, Plus, DESFire and Ultralight

Four NXP chip families cover almost every hotel installation. The table sets them side by side on the terms that decide an order: where the security stands, which lock generations expect them, how much work a migration is, and the relative cost tier of the chip itself.

The lock decides. A reader only opens the door for a chip its firmware is built to authenticate, and the firmware in your building matters more than any brand-level list. Confirm the accepted chip with the lock vendor for your exact model, and test a sample in your own encoder and in the lock before committing to a run. The cost tiers below describe the chip only; the card price for your specification and quantity is confirmed in the quotation.

• Classic 1K/4K only for an existing Classic-only estate with no upgrade planned; re-encode every stay to limit the exposure of any cloned card.
• MIFARE Plus when migrating off Classic or spanning a mixed estate with one SKU that works today in SL1 and moves to AES in SL3 as locks are upgraded.
• DESFire EV2/EV3 for new builds, brand or insurer security mandates, and any card that must also carry spa, lift, loyalty or cashless applications; specify EV3 where wallet keys are on the roadmap.
• Ultralight C/EV1 for high-volume disposable or single-stay cards where the lock already expects it and full AES is not required.

Check these options against your system →

Lock compatibility by brand

The seven brands below account for most hotel estates. The matrix consolidates what each lock family accepts at the card level: the lock generations you are likely to meet, the card technologies their reader heads read, and the details to confirm before ordering. Every cell describes documented chip acceptance as published by the lock vendor — not partnership, authorisation or endorsement — and it does not override the firmware installed in your building. Where a chip is not listed as standard for a brand, treat it as unconfirmed until the vendor states otherwise in writing for your model. Read it with the verification steps in the next section: the reader head, encoder and back-end all have to agree before a card opens a door.

Magnetic-stripe coexistence. Several of these brands still run a magnetic stripe beside the RFID chip (Onity HT-series, Saflok MT and combo locks, VingCard Classic dual-track, Miwa AL5H), and a combi card bridges the two while lifts, car parks or a legacy wing keep older stripe readers. Coercivity matters: hotel stripes are high-coercivity (HiCo, around 2750 oersted) or low-coercivity (LoCo, around 300 oersted), and HiCo resists accidental erasure far better, so the stripe and encoder must be set to the same type. The belief that phones and magnets wipe key cards comes from the stripe, not the chip: an RFID chip stores data in silicon memory with no magnetic domain, so a phone or fridge magnet cannot erase it, though a strong magnet can weaken a LoCo stripe. Replacing an RFID-only card because "a phone demagnetised it" hides no defect — the cause is almost always a flat lock battery, a drifted clock or a mixed chip batch.

Check these options against your system →

Verifying compatibility before you order

Lock vendors publish which chips each lock generation accepts, but the installed firmware in your building is what matters. Older readers may accept Classic only; upgraded firmware may accept Classic and Plus in compatibility mode; the newest generations expect DESFire. Mixed estates are common in properties that have been extended or refurbished in phases.

The reliable procedure is short:

1. Identify the lock model and firmware on a sample of doors, including any older wing.
2. Send a working card so the chip type and sector layout can be read.
3. Order a small pilot batch and encode it on your own front-desk encoder.
4. Test the pilot cards on every lock generation in the building, including staff and back-of-house doors.
5. Only then place the production order with artwork.

Migrating from MIFARE Classic without locking guests out

MIFARE Classic's Crypto-1 cipher was reverse-engineered in 2008 and cheap cloning tools have been available since. A cloned guest card opens one room for one stay; a cloned master or housekeeping card is a much bigger problem. Insurers and chain security standards increasingly require an AES-based chip for new installations.

The migration order matters. Upgrade the lock firmware first so that the estate accepts both the old chip and the new one. Issue the new chip (Plus or DESFire) to arriving guests while cards already in circulation keep working through their stay. After a sunset window, disable Classic on the locks. Hold both card stocks during the transition and agree in advance who owns the AES keys, because the lock vendor's key management, not the card supplier, is what makes the new chip secure.

MIFARE Plus suits this path because SL1 runs during the transition and switches to AES afterwards; DESFire is the cleaner end state where the locks support it.

Card body, print and sustainability

The card body has no effect on the lock as long as the antenna is tuned for it, which we check per material. What it changes is the guest's first impression and the property's sustainability reporting.

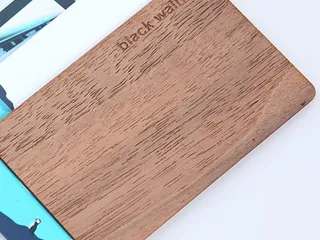

Standard cards are ISO/IEC 7810 ID-1 (85.6 × 54 mm, 0.76 mm thick) laminated PVC with full-colour print, and they remain the workhorse for most properties. Wooden and bamboo cards use a real veneer over the inlay and print or laser-engrave the property's mark. Paper and PLA or recycled-PVC cards are the usual answers to a plastic-reduction policy; paper is best for single-stay use, PLA and recycled PVC for reuse.

Whatever the body, the print run needs the same inputs: artwork in CMYK with bleed, any spot colours or metallic foils, whether a signature panel or numbering is required, and the encoder's requirements for card orientation.

Where key card programmes actually fail

The complaint at the desk is always "my card stopped working". The causes are a short list, and the chip is rarely one of them.

• Mixed chip stock. A refill order with a different chip or memory configuration that the encoder writes but the older locks reject. Fix: one specification per property, verified before each reorder.
• Encoder settings. A software update that changes the sector layout or keys without the stock being re-verified. Fix: encode and test a card after any lock-software update.
• Lock batteries and clocks. Offline locks drift or run down and start rejecting valid stay windows. Fix: battery rotation and clock checks as part of maintenance, not as a card issue.
• Physical wear. Cards that live in pockets with keys and coins crack at the antenna weld. Fix: laminated PVC or a thicker veneer for reusable cards; disposables for single stays.
• Stock-outs. A seasonal peak with no buffer stock and a long print lead time. Fix: hold blank or pre-printed reserve stock per property.
• Phones and magnets. As the magstripe section explains, phones and magnets cannot erase an RFID chip; replacing a card for this reason hides no defect.

What Proud Tek manufactures

We make the card, not the lock. Our hotel key cards are produced in our Shenzhen factory, blank or printed, in PVC, wood, bamboo, paper or PLA, with the MIFARE chip your locks accept, and optionally with a magnetic stripe for properties still bridging two reader types. We verify the chip against your sample card before quoting, arrange a pilot batch for new lock generations, and hold artwork and specification per property so reorders match the first run. Cards are shipped unencoded; encoding happens on your own front-desk system with your own keys.
