How RFID inventory tracking works
RFID inventory tracking identifies each tagged item, case, location or asset by radio, and the warehouse management system (WMS) updates stock and location records from the reads. Warehouses use passive UHF RFID, also called RAIN RFID: the reader's field powers a battery-free tag, which answers with its Electronic Product Code (EPC).
The air interface is GS1's EPC Gen2 standard, harmonised with ISO/IEC 18000-63. Tags need no line of sight, and many are read in one sweep, so a bay is counted without opening its cartons.
Europe uses 865–868 MHz under ETSI EN 302 208 and the US 902–928 MHz under 47 CFR 15.247. A label can perform differently in each band, so test samples where the goods will be read.
Stock that suppliers tag at source arrives with its EPC; choosing identifiers and checking loads at the dock door are covered in RFID supply chain management. This page is about the stock between the doors.
Read points inside the site: how close to real time
Passive UHF RFID reports where a tag was last read. Handhelds give a snapshot of the area swept, zone readers log goods passing between areas, and overhead array readers estimate position within their coverage. How close to real time you get depends on how many fixed read points you install: a reader decision, not a tag decision.
Many sites start with handhelds for counting and add fixed readers only where nobody should need to press a trigger.
| Read point | What it confirms | What to test in the pilot |
|---|---|---|
| Handheld reader | Cycle counts, put-away checks, item search | Count time and accuracy against your barcode baseline |
| Forklift reader | Pallet identity at pick-up and put-down | Which of several pallets in range is read |
| Zone reader between areas | Moves between storage, picking and staging | Reads leaking from the neighbouring zone |
| Exit reader | Assets or stock leaving the building | Direction and stray reads |
| Overhead array reader | Approximate position and movement | Reported position against a manual check |
Cycle counts with handheld readers
A cycle count checks part of the stored stock against the record, zone by zone, instead of waiting for a wall-to-wall count. With RFID, a handheld reads many tags per sweep and the middleware counts each EPC once, so a bay is counted without opening its cartons and the count can be repeated as often as the zone needs.
Count frequency then becomes a choice per zone: fast movers and high-value stock more often, bulk reserve less. For store counts and the published count-time studies, see RFID for retail and apparel. What limits a handheld count:
- Storage height: test a sweep of the top levels of high-bay racking, and plan a forklift or fixed reader where a handheld does not reach.
- Metal and density: metal shelving and tightly packed stock can hide tags behind them; stagger labels and test the real bay.
- Exceptions: a count only helps if someone corrects the record and follows up the gap.
Measuring inventory accuracy before and after
Agree how accuracy is calculated before the pilot, and use the same formula before and after. Auburn University's RFID Lab (Inventory Accuracy whitepaper, 2023) compares four ways of scoring the on-hand record (OH) against an actual count, per stock-keeping unit (SKU):
| Metric | How it is calculated | What to know |
|---|---|---|
| Total magnitude | Sum of actual units ÷ sum of on-hand units | Overstated and understated SKUs cancel out; the whitepaper says its most common purpose is financial accounting and that it is not an effective measure of record accuracy |
| Exact match | Share of SKUs whose actual count equals the record | The most common method; a SKU one unit off scores the same as one that is nearly empty |
| Sum of absolute variance (SAV) | 1 − Σ|actual − OH| ÷ ΣOH | Can go negative; SKUs with many units mask those with few |
| SMAPE | 1 − the average over SKUs of |actual − OH| ÷ (|actual| + |OH|) | Weights SKUs close to stock-out more heavily; the whitepaper proposes it as the universal standard |
What frequent counts correct inside the site
RFID makes errors visible sooner rather than preventing them. The same whitepaper calls a SKU that has an on-hand quantity but no units actually there a frozen out-of-stock: nothing is reordered, because the record says there is stock, until a count corrects it.
Delivery errors are best caught at the dock, before they enter stock (supply chain guide). Manufacturers use the same in-site reads for materials, work in progress and finished goods.
| Source of error | Read that catches it | What the WMS does |
|---|---|---|
| Frozen out-of-stock (phantom stock) | Frequent handheld counts | Corrects the on-hand quantity so replenishment triggers |
| Misplaced stock | Handheld search, or an LED tag lit by a supporting reader | Updates the location |
| Stock moved without a transaction | Zone reader at the boundary, or the next count | Records the move or flags it |
| Assets leaving the site | Exit reader, by GIAI | Records where each one went |
Tags for racks, bins and stored goods
Source-tagged goods carry their supplier's label. Label stock that arrives untagged, and add tags for locations, containers you own and assets, choosing each by the surface it sits on. GS1 US's EPC placement guideline warns that a common product tag pressed against metal shelving is detuned, and that on-metal tags are the specialty option for assets such as tooling.
Blank rolls for your printer-encoder, wet inlays for your converter and dry inlays for embedding are compared on UHF RFID labels and UHF RFID inlays.
| Where the tag goes | Suitable tag | What to watch | Proud Tek product |
|---|---|---|---|
| Rack beam, shelf or bin location | UHF label, or an on-metal tag on steel racking | Flat mounting area within reach of the sweep | UHF labels or custom tags |
| Metal cages, IT equipment, machines | On-metal tag with a spacer | Flat area away from vents; heat and cleaning | Custom tags |
| Totes and bins that stay on site | Hard tag riveted or recessed | Washing, impact | Custom tags |
| Stock that arrives untagged | Printed UHF label applied on arrival | Same position on every case | UHF labels |
| Box files and archive boxes | UHF label on each file or box | Stagger labels on tightly packed shelves | UHF labels |
| Bottled liquids and cans in storage | Tag and position chosen by test | Liquid or metal between tag and reader | UHF labels or custom tags |
Fixed assets, tools and records
Inventory tracking counts stock; asset tracking follows things you own and keep, on durable tags, and asks where each one is and who has it. Containers that travel between sites are covered in the supply chain guide.

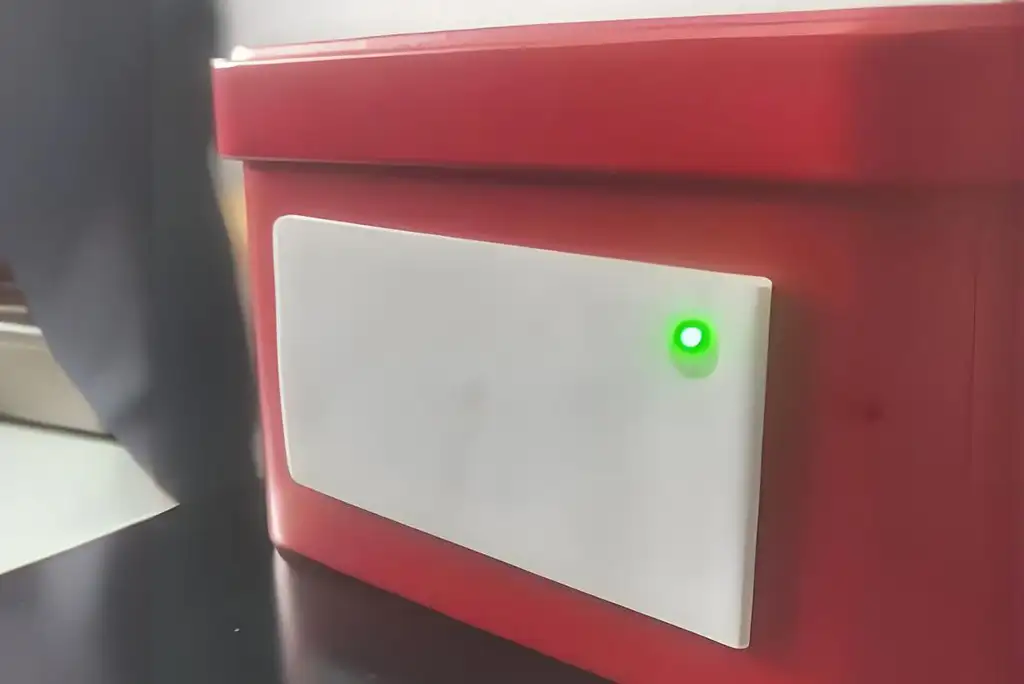

The Global Individual Asset Identifier (GIAI) covers individual assets such as computers, vehicles and transport equipment. IT equipment needs on-metal tags on a flat area away from vents. A handheld sweep lists what is in a room, and an LED tag lights when a supporting reader selects it, at shorter range than a plain read. For hand tools, see RFID tool tracking.
Physical records work the same way: with a UHF label on each file or archive box, a handheld inventories a shelf without scanning spines.

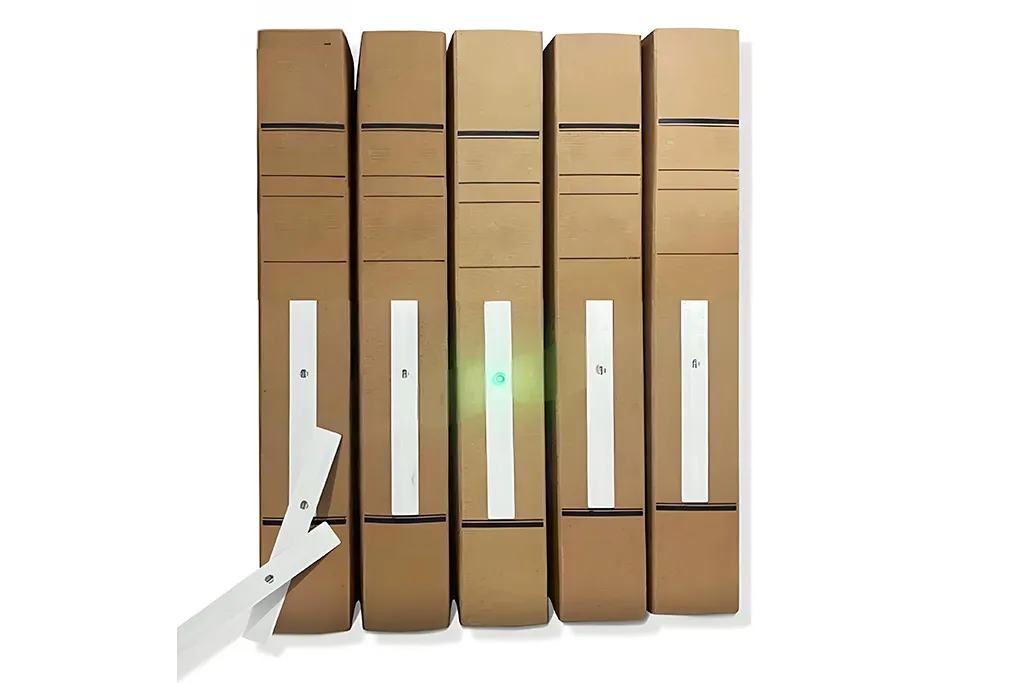

Finding one file among many

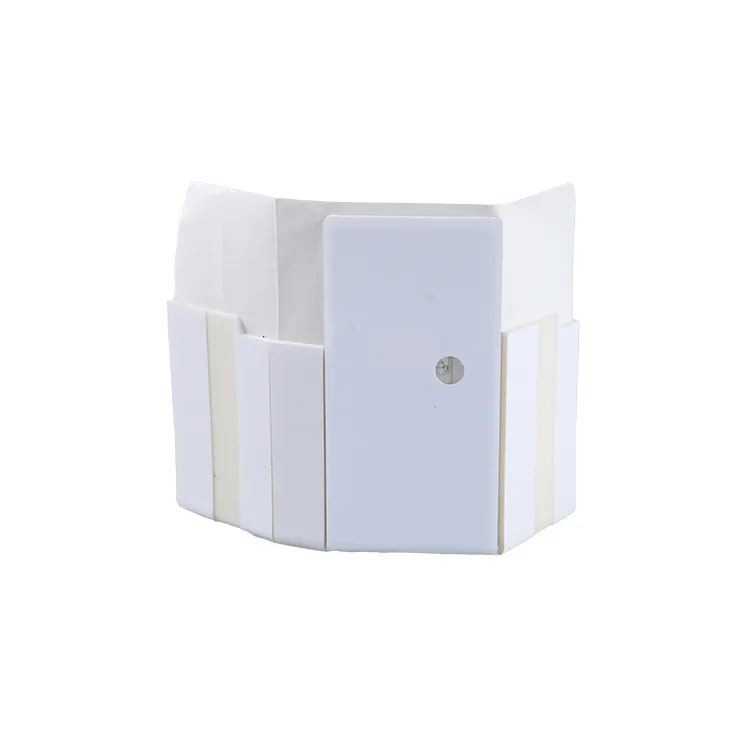

On-metal construction for metal surfaces
Numbering and encoding asset and location tags
Use GS1 keys so a read means the same thing to the WMS and your trading partners: GIAI for your own assets and SGLN for locations. The full table of keys and EPC schemes is in RFID supply chain management. The GS1 EPC encoder decodes SGTIN-96 item EPCs from a handheld; for another 96-bit EPC, such as a GIAI-96 or SGLN-96, it only names the scheme.
An asset number with letters needs GIAI-202 (up to 24 alphanumeric characters, fewer with a longer company prefix) rather than the numeric GIAI-96, and so a chip with more than 96 bits of EPC memory (EPC Tag Data Standard, TDS 2.3). We encode the EPC from your GS1 company prefix and serial plan, read back every encoded tag, ship a data report with each encoded order and can print a matching barcode as a fallback; see the encoding service. Record each tag's TID with its EPC to catch duplicates.
Who does what: tags, readers and WMS integration
An RFID inventory system has four layers: tags, readers and antennas, middleware that filters raw reads into events, and the WMS or ERP that acts on them. Proud Tek supplies the tags.
We do not supply UHF fixed or handheld readers, antennas, printer-encoders, middleware, WMS or ERP integration, or real-time location systems, whether overhead UHF array readers or active, BLE or UWB tags. Our reader range contains no UHF readers; it covers desktop NFC readers and a 134 kHz animal-tag reader.
| Layer | What it does | Who supplies it |
|---|---|---|
| Tags, labels, inlays | Carry the EPC and a fallback barcode | Proud Tek: manufactured, encoded, sampled |
| Readers and antennas | Handhelds, forklift, zone, exit and overhead readers | Reader makers, via the integrator |
| Middleware | Filters duplicate and stray reads; direction logic | The integrator or reader maker |
| WMS or ERP | Turns reads into counts, moves and asset records | The integrator or WMS vendor |
Running a count pilot
Pilot one storage zone and one asset class with production-grade tags before equipping the whole site. Agree the acceptance figures, and the accuracy formula, in advance.
To turn the pilot's count times, accuracy and costs into a payback estimate, enter them in the RFID inventory ROI calculator.
- Baseline: count time per zone, record accuracy by the agreed formula, and how often each zone is counted today.
- Scope: include metal racking, liquids and the densest bays now, not after rollout.
- Samples: we propose a tag per surface. Standard blank samples are free; printed, encoded or custom samples carry a setup fee.
- Placement: fix and photograph the tag position per location and asset type.
- Measure: tags missed in a sweep, found by a manual recount of the same bay; count time; stray reads from neighbouring bays; exceptions resolved.
- Freeze: approve tag, chip, encoding and placement as the reorder specification.
What Proud Tek manufactures and what to send for a quote
Proud Tek has manufactured RFID and NFC products in Shenzhen since 2008. We produce UHF RFID labels of all kinds, from blank print-and-encode rolls to printed location and asset labels; dry and wet UHF inlays; custom RFID tags such as on-metal and hard tags; and LED locating tags. If you are an integrator or distributor, we work to your specification, send samples for your readers and supply printed, encoded tags for your customers' sites.
We quote within one business day of a workable enquiry, confirming chip, construction, size, materials, encoding and any rating in the quotation and on samples. Standard items generally have a 2–3 week lead time; printed, encoded and custom items, and large orders, are scheduled in the quotation. Send:
- What is tagged, with photos and materials
- Surfaces and environment: racking, cold store, outdoor, washing
- Read points and any chosen reader or printer-encoder
- Countries of use
- Identifier scheme, GS1 company prefix and serial plan if we encode
- Label size, print content, core, outer diameter and wind direction
- Quantities and call-off schedule
