RFID Access Control

RFID credentials for access control systems

Every access control system is asked to do two contradictory things at once: keep the wrong people out, and never once make the right people wait at the door. A credential is the small object caught in the middle of that argument — it has to be cheap enough to hand out by the thousand, and hard enough to forge that nobody bothers. Most of the decisions below are really about where you want to sit on that line.

Access control applications by sector

The credential family barely changes between verticals — what changes is which failure gets expensive. An office badge that misreads costs a few seconds of lobby grumbling; a medication-room door that fails open costs an audit finding. The notes below map each tier to the sector where it earns its keep — key-ring form factors get fuller treatment under RFID key fobs for access control, and elevator wiring specifics in RFID elevator floor access.

1. Week 1 — Audit existing credential and reader inventory

   Walk every door, log existing reader make / model / firmware / wiring (Wiegand vs OSDP), credential chip family (EM4100 / HID Prox / MIFARE Classic / DESFire / Seos), facility-code and cardholder-ID range. Identify ESPKey-vulnerable Wiegand runs and any MIFARE Classic populations slated for replacement.

2. Week 2 — Define credential specification and chip-family decision

   Pick the target tier per security zone — DESFire EV3 baseline for general office, Seos for federal / contractor mix, Plus EV2 for staged migration without forklift reader replacement — then fix the card / fob / wristband split and photo-ID printing needs per population.

3. Week 3 — Select reader and panel hardware against PACS head-end

   Match readers (HID Signo / OMNIKEY 5427CK / multiCLASS SE) and panels (Mercury LP-1502 / LP-2500, ISONAS Pure IP) to the incumbent head-end — Genetec Synergis, Lenel S2, Honeywell Pro-Watch, C·CURE 9000, AMAG Symmetry or Gallagher — and verify OSDP v2.2 conformance on the SIA OSDP Verified list.

4. Week 4 — Pilot 5–10 doors and validate end-to-end transaction

   Pilot one entrance, one secure-zone door, one elevator, one revolving door and one ATEX / industrial cabinet. Validate AES Secure Channel transactions, OSDP tamper events, photo-ID workflow, lost-card hot-list propagation, anti-passback and two-person rule.

5. Month 2 — Personalise and despatch credential population in waves

   Print + encode in waves of ≤500 to manage helpdesk load; ship pre-personalised with facility code + cardholder-ID range encoded; hook provisioning to the HR feed (Workday / SuccessFactors / SAP HCM); issue temporary credentials at the security desk for visitor / contractor / replacement workflows.

6. Month 3 — Cut over Wiegand-to-OSDP and decommission legacy

   Replace Wiegand cabling segment by segment; enable OSDP Secure Channel with a rotated install-key; retire legacy MIFARE Classic populations via dual-credential transition; push PACS and reader firmware OTA via OSDP.

7. Month 4 — Mobile-credential rollout for early-adopter cohort

   Enable HID Mobile Access (Origo) or vendor mobile (Salto JustIN / Allegion Mobile / LEGIC mobile) for executive + IT + facilities + frequent-visitor cohorts; validate Apple Wallet employee-badge issuance where the reader fleet is Apple-Wallet-Verified. Plastic remains primary; phone is the opt-in complement.

8. Quarter 2 onward — Operate, audit and refresh on 5-year cycle

   Quarterly PACS audit (SOC-2 CC6.4 / NIST 800-53 PE-3 / ISO 27001 A.7.2 evidence pull); annual credential reissue for damaged / lost cards; 5-year card-body refresh for student / hospital ID populations; 7–10-year reader hardware refresh; continuous OSDP firmware OTA.

• Corporate offices: employee badges with MIFARE DESFire for door access, elevator control, time and attendance, secure printing and cashless vending.
• Residential buildings: apartment access cards or key fobs for main entrance, parking garage, gym, pool and common area doors.
• Hotels and resorts: guest key cards for room doors, elevators, pool gates, gym access and spa facilities, encoded for check-in to check-out duration.
• Education: student and staff ID cards for building access, library entry, meal plans, printing credits and campus transit.
• Healthcare: staff badges for restricted area access, medication rooms, operating theaters and patient ward doors with role-based permissions.

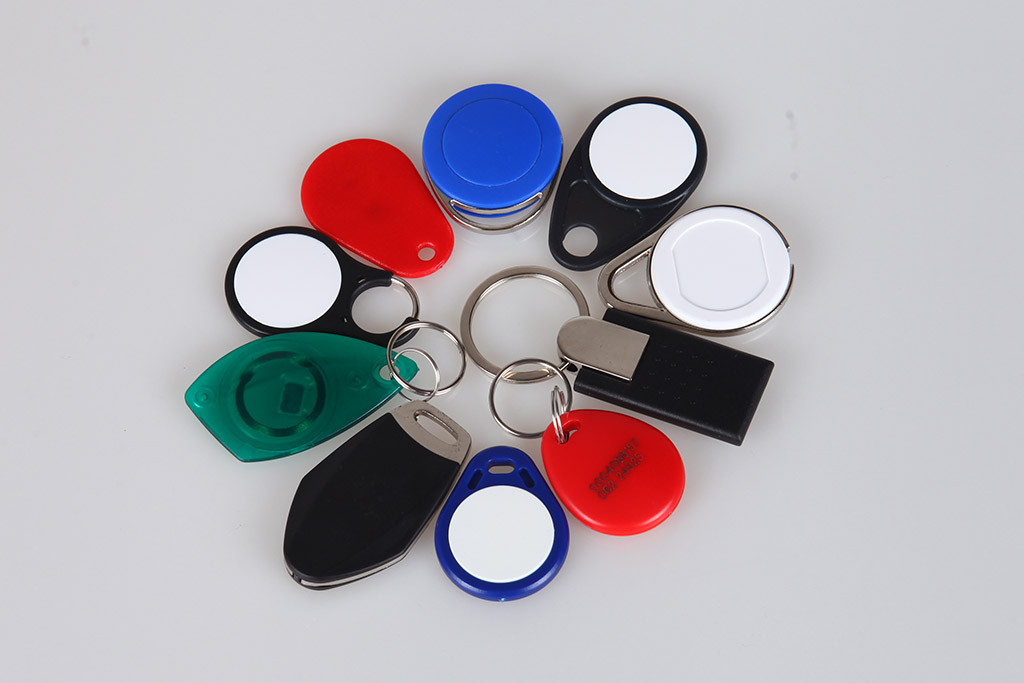

• Industrial and construction: rugged key fobs and wristbands for site gate access, equipment rooms and restricted zones in harsh environments.

Credential silicon deep-dive — four security tiers explained

Four tiers, one question: how expensive is the attack you are defending against? The ladder below runs from silicon a hobbyist tool clones during a coffee break up to AES-128 mutual authentication with no public break — and the bullets put part numbers to every rung.

• Tier-1 (125 kHz LF) — EM4100 / EM4102 / HID Prox 26-bit H10301 / HID ProxII / Indala / Casi-Rusco / AWID / Keri PSK / KeriPRX: simple LF inductive coupling at 125 kHz, ISO 11784/11785 lineage, 64-bit manufacturer ID + 26-bit Wiegand facility code. No cryptography. Cloneable in <60 seconds with $30 Proxmark3 RDV4 / Proxmark Easy / Flipper Zero / Iceman fork. Retained only for legacy maintenance — every NIST SP 800-116 Rev 1 audit flags LF as a deficiency for sensitive areas.
• Tier-2 (13.56 MHz HF Classic) — NXP MIFARE Classic 1K / 4K (S50 / S70 silicon): ISO/IEC 14443-A air interface, 1KB or 4KB EEPROM partitioned into sectors with Crypto-1 stream-cipher 48-bit keys. Crypto-1 academically broken in 2008 (Garcia, de Koning Gans, Verdult — Radboud University Nijmegen) — sector keys recoverable in <1 minute via nested + darkside + hardnested attacks (mfoc, mfcuk, hardnested). Still widely installed but recommended for replacement during next refresh cycle.
• Tier-3 transitional (13.56 MHz HF AES) — NXP MIFARE Plus EV1 / EV2 (X / SE / S variants): backwards-compatible MIFARE Classic emulation mode + AES-128 SL3 mode. SL3 (security level 3) provides AES mutual authentication while SL1 keeps Crypto-1 compatibility so legacy readers still read the card during migration. Common procurement pattern for organisations doing reader refresh without forklift swap.
• Tier-4 enterprise (13.56 MHz HF AES + file-based) — NXP MIFARE DESFire EV2 / EV3 (D40 → D41 → D81 silicon): ISO/IEC 14443-A + ISO/IEC 7816-4 file-based directory (up to 28 apps × 32 files per app), AES-128 mutual authentication, 3DES legacy mode, Secure Messaging EV2, Random UID, Originality Signature. EV3 adds Transaction Timer + SUN message + Proximity Check against relay attacks. No public break as of 2026.
• Tier-4 alternative — HID iCLASS Seos: HID's proprietary AES-128 credential on Seos silicon (Infineon SLE 78), programmed via HID Origo or HID-managed encoding. Same trust level as DESFire EV3; backwards-compatible with iCLASS legacy (Pico / Standard / SE) on multiCLASS SE readers; federal PIV-Auth / PKI-CAK / PKI-AUTH compliant.
• Tier-4 alternative — LEGIC advant (Kaba Group, Switzerland): 13.56 MHz file-based credential, AES-128 + 3DES; common in European corporate / hotel / leisure estates, with LEGIC Connect managing the credential lifecycle.
• Newer entrant — NTAG 424 DNA (NFC Type 4, AES-CMAC SUN message): consumer-grade NFC tag with cryptographic per-tap signing — used for brand-protection and tap-to-verify access in low-volume executive / VIP applications. NOT a direct DESFire EV3 substitute for high-throughput PACS doors.
• Newer entrant — Apple Wallet / Google Wallet credential: phone secure-element-backed, provisioned via HID Origo / Salto JustIN / Allegion Mobile / LEGIC Connect. Cryptographically Tier-4 AES-128 equivalent, but requires an Apple-Wallet-Verified or Google-Wallet-compatible reader fleet.

PACS head-end integration — Genetec / Lenel / Honeywell / C·CURE / AMAG / Bosch / Gallagher

A credential is only as trustworthy as the head-end that enrols it. The stack below traces the full path — credential to reader to panel to PACS software — and the platform notes that follow say which vendors dominate each estate, so you can buy cards that match the software you already run instead of discovering the encoding format after despatch.

OSDP v2.2 migration from Wiegand — why and how

Wiegand is a 1974 protocol still guarding 2026 doors, and it shows: unencrypted, one-way, and tappable with a device that costs less than the door it defeats. The comparison below makes the case for OSDP v2.2; the bullets underneath are the migration playbook, cabling and pitfalls included.

• OSDP Verified — SIA certifies readers + panels for v2.2 conformance via independent lab test (UL / Intertek); the verified list at sia.org/osdp is the procurement starting point. Major verified vendors: HID Signo, Mercury LP, ISONAS Pure IP, Allegion AD-Series, Identiv uTrust, Farpointe Pyramid.
• Common pitfalls — install-key left at factory default (the most common audit finding); OSDP v1.x readers (no Secure Channel) mixed with v2.2 panels; unshielded RS-485 run next to PoE cabling; missing termination resistor at the far end of the bus.

• ✓Phase 1 — audit Wiegand runs; flag ESPKey-exposed segments (typically ceiling plenum at panel side)
• ✓Phase 2 — swap readers to OSDP-Verified dual-output (Wiegand + OSDP) so existing panels keep working
• ✓Phase 3 — replace panels (Mercury LP-series / HID VertX V1000 / ISONAS) during normal refresh; switch readers to OSDP-only output
• ✓Phase 4 — enable AES Secure Channel with a rotated install-key per OSDP IS-Key Distribution best practice (don't ship default 0x00 keys)

Mobile credentials — HID Origo / Apple Wallet / Aliro 1.0 unified standard

Phone-as-badge is real and growing — and still a complement to plastic, not a replacement. The map below shows today's vendor-cloud silos and where the Aliro standard is positioned to dissolve them; plan the next reader refresh with that horizon in mind.

• Plastic persists — mobile credential is opt-in for ~10–25% of a population (executive / IT / facilities / frequent visitors). Plastic remains primary where phones don't go: industrial / construction (no phone on body), healthcare patient (sterile / wash protocol), K-12 (phone restriction policy), short-term visitor / contractor (no enrollment time), hospitality guest (Apple Wallet hotel keys still <2% of stays as of 2026).

Anti-cloning threat model + operational defences

Every attack on this list has a commercial tool behind it, which is exactly why the defence column matters more than the scare column. The map below pairs each threat with its counter; and if a credential in your estate has already been copied, what to do after an access card is cloned walks through the recovery sequence.

• Threat — LF 125 kHz cloning: Proxmark3 RDV4 / Iceman + Flipper Zero / ChameleonMini reads EM4100 / HID Prox / Indala / Casi-Rusco / AWID / Keri raw card data in <60 seconds; writes to T5577 or replays via Flipper. Defence: migrate to HF DESFire EV3 / Seos; deploy LF + HF dual-tech readers during migration; monitor PACS for unusual access patterns (same credential at two distant doors within window).
• Threat — MIFARE Classic Crypto-1 break (2008+): mfoc nested attack recovers sector keys in 1–5 min with one known key; mfcuk darkside needs none; cloning to blanks or magic-UID cards is trivial. Defence: migrate to DESFire EV3 / Seos / Plus SL3 — or run Classic in UID-only mode and treat it as a Tier-1 surrogate, not a cryptographic credential.

Compliance + standards — UL 294 / NIST SP 800-116 / FIPS 201 / NDAA 889

Standards are how a PACS purchase survives its audit. The list is long because the estates are varied — federal buyers start at FICAM and FIPS 201-3, commercial buyers at UL 294, and everyone meets the ADA at the door.

Programme economics + TCO + procurement leverage

The credential is usually the cheapest line on the invoice. The cost anatomy below shows where a typical enterprise refresh budget actually lands, and the bullets give the unit-price ranges — and the consolidation levers — to negotiate against.

• ~$420KYear-1 total — typical 200-door enterprise refresh
• ~$2.1KYear-1 cost per door
• ~$33K/yearRecurring from Year 2 (SMA + replacement + mobile)
• 8–15%Annual lost-card replacement rate

• Credential unit cost at scale (10K+ qty): EM4100 LF card $0.40–$0.80; MIFARE Classic 1K $0.80–$1.20; MIFARE Plus SE $1.50–$2.50; DESFire EV3 $2.80–$5.50; Seos $3.50–$8.00; printable employee badge (any chip) +$0.20–$0.50 for card body. Key-fob form factor +20–50% on chip cost.
• Year-1 anatomy, 200-door refresh: 5,000 DESFire EV3 cards × $4 = $20K; 200 OSDP readers × $400 = $80K; 25 Mercury LP-2500 panels × $2.5K = $62K; install labour 200 × $300 = $60K; Genetec Synergis perpetual + SMA = $150K Y1; integration services $50K. Year-1 total ~$420K, ~$2.1K per door.
• Annual recurring (Year 2+): SMA $30K; credential replacement (10% annual) 500 × $4 = $2K; mobile-credential subscription 250 cohort × $5 = $1.3K — total ~$33K/year. A self-service kiosk (HID Crescendo + photo + encoder) cuts replacement help-desk minutes from 15 → 3.
• Compliance avoidance value: PCI-DSS physical-access non-compliance fines $5K–$100K per breach; HIPAA physical safeguard non-compliance up to $50K per violation; NIST 800-53 PE-3 / PE-4 / PE-6 deficiency findings drive FedRAMP / FISMA delays worth millions in lost contract value.

• ✓Consolidate SKUs — 3–5 strategic chip + form-factor combos covering 90% of volume: 12–25% unit-price improvement vs fragmented spec sprawl
• ✓Commit multi-year + volume: another 10–20%
• ✓Buy pre-personalised (delivered ready-to-issue): saves $0.50–$2.00 per credential vs on-site encoding
