How Does an RFID Card Work? The Tech Inside

What's inside an RFID card?

Inside an RFID card there is no battery, no buttons, no blinking lights — just a hair-thin loop of wire and a fleck of silicon the size of a pepper flake. Slice a finished card in half (metaphorically, please — don't butcher your hotel key) and that is the entire inventory. The sleepy little fleck lies there doing absolutely nothing until a reader wakes it up and hands it power through thin air; it is, technically, the laziest genius you will ever meet. Here is everything laminated inside that 0.76mm plastic sandwich.

A passive RFID card is basically a wind-up toy — except someone else winds it up for you, from a few centimeters away, using invisible radio waves. It stores no power and holds no opinions until it is summoned.

• Antenna coil — a flat loop of thin copper or aluminum wire laminated between PVC card layers, working two jobs with no lunch break: it captures electromagnetic energy from the reader to power the chip, and it flings the chip's data back to the reader by modulating the reader's field.
• Microchip (IC) — a silicon integrated circuit typically 1-2mm square (genuinely smaller than a grain of rice), bonded to the antenna at a connection point. Packed inside: a processor, memory (ROM, EEPROM, RAM), and a radio frequency interface. It stores the card's unique identifier and any application data it has been given.
• PVC card body — the standard CR80 card (85.6 x 54mm, 0.76mm thick) made from layers of PVC or PETG plastic. The antenna and chip inlay is laminated between inner PVC sheets, then the outer printed layers are fused on top under heat and pressure.
• No battery. None. — the entire card is passive: no battery, no power button, no active electronics. Every joule it uses is borrowed from the reader's electromagnetic field when the card comes within range, which is exactly why these cards soldier on for years without maintenance while your phone begs for a charger by 3 p.m.
• Printing layers — the card's outer surfaces can carry full-color artwork, logos, text, barcodes, photos and security features using offset, digital or thermal transfer printing. The chip and antenna underneath could not care less: bury them under the busiest brand guidelines marketing can produce and the RFID functionality inside is unaffected.

How the card communicates with the reader

A tap is a five-step handshake — power up, prove identity, swap data, power down — finished in 50-200 milliseconds, before your hand has completed the gesture. On its own the chip is inert: no power, nothing to say, no opinions worth having. Bring it into a reader's field and the whole conversation plays out below, stretched from milliseconds to human speed.

Nerd corner: a passive card never actually "transmits." It has no transmitter and no power to run one. Load modulation means it replies by tightening and loosening its grip on the reader's own field — the electromagnetic equivalent of answering questions by squeezing someone's hand harder and softer. The reader does all the shouting; the card just changes how heavily it leans.

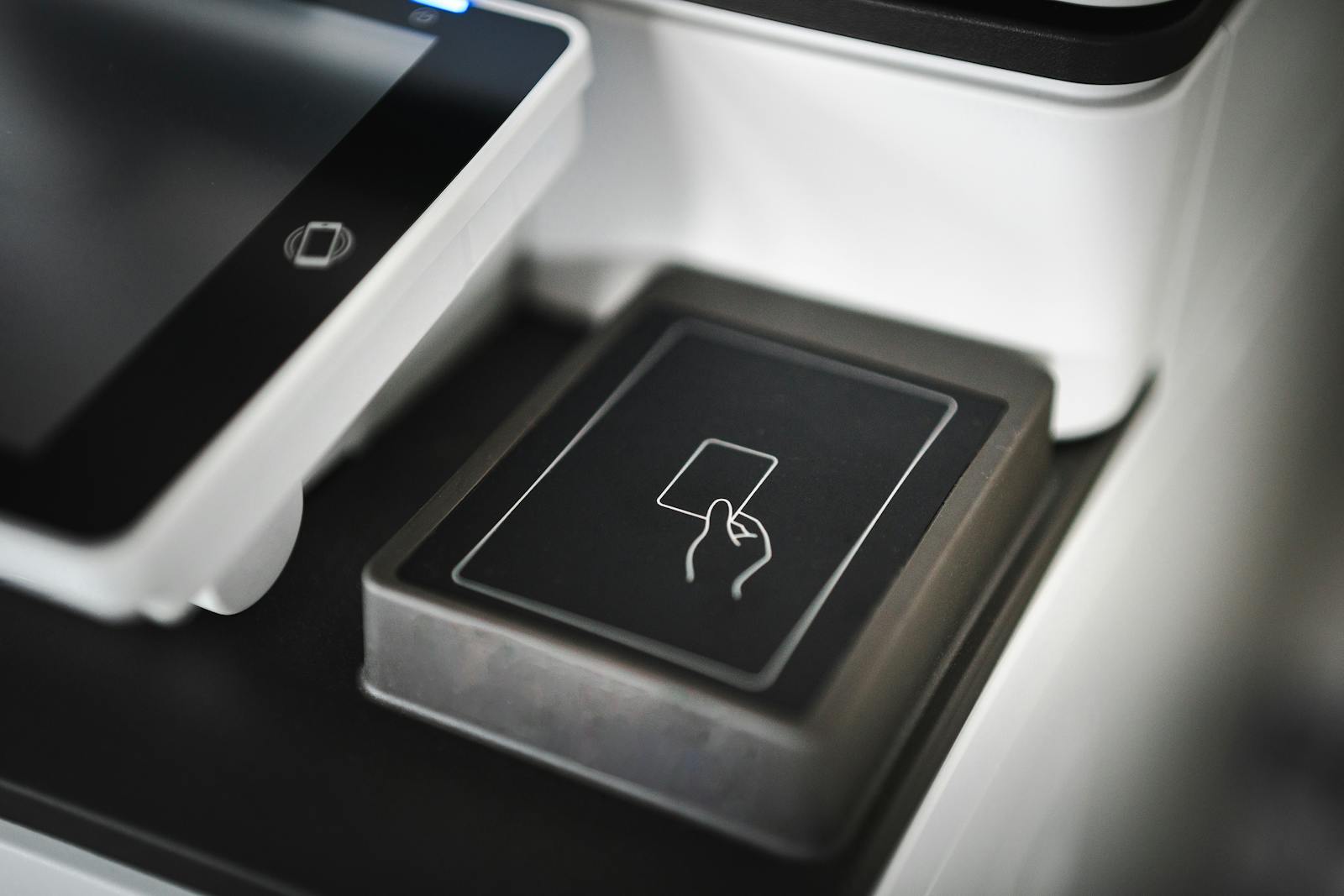

• Step 1: Reader energizes. The card reader generates an alternating electromagnetic field at the card's operating frequency (13.56 MHz for most smart cards, 125 kHz for legacy access cards). This field extends a few centimeters from the reader surface — precisely why you have to actually tap, and can't open doors from the car park.
• Step 2: Card powers up. When the card enters the reader's field, the antenna coil captures electromagnetic energy through induction (the very same trick a wireless phone charger uses). The energy is rectified into DC power and the chip flickers to life on entirely borrowed electricity.
• Step 3: Reader sends commands. The reader modulates its field to transmit commands: request the card's UID, authenticate the card, or read data from specific memory sectors. The card, having just woken up with no memory of the last conversation, complies.
• Step 4: Card responds. Here's the clever bit — the chip can't transmit, it has no power to spare. So it sends its response by modulating the load on the reader's field (called load modulation), subtly changing how much energy it draws. The reader detects these tiny variations and decodes the card's data. Morse code performed entirely by flinching.
• Step 5: Transaction completes. The entire exchange (power, authenticate, read/write data) takes 50-200 milliseconds. When the card moves away from the reader's field, the chip powers down and retains its data in non-volatile memory until the next interaction.

Why do RFID cards beat magnetic stripe and barcode?

RFID cards replaced magnetic stripes in hotels, transit and access control for five concrete, unglamorous reasons that show up in everyday operation, not just the spec sheet. The stripe never lost on charisma; it lost on wear, weather, cloning, capacity and throughput — all five at once.

A magstripe is a static playback device. Modern RFID is a live cryptographic conversation.

• Contactless reads — no physical contact between card and reader means no wear on either side, no friction, nothing to grind down. Magnetic stripes wear out in 200-500 swipes; an RFID card's antenna shrugs off 100,000+ read cycles with no mechanical degradation whatsoever.
• Tolerance to dirt and weather — rain, dust and lint on a magstripe head causes immediate read failures. RFID reads straight through plastic wallets, leather, gloves and a few millimeters of water without dropping signal.
• Active anti-cloning — a magstripe is copied once and owned forever. NTAG 424 DNA and DESFire EV3 sign every read with rotating cryptographic challenges that magnetic stripes simply cannot match. Photograph versus live interrogation.
• Multi-application capability — one DESFire card can hold separate applications for room access, employee ID and cashless payment in walled-off memory zones. Magstripe forces one application per track, three tracks max — and that's the whole menu.
• Bulk read at gates — RAIN UHF cards (used at toll booths and stadium entries) read 50-200 cards per second from 3-5 m. Magstripe and barcode demand single-file scanning and never approach this throughput.

Frequency families and chip selection — 125 kHz, 13.56 MHz HF, 860-960 MHz UHF

RFID operates in three frequency bands, and each trades range, security, smartphone-compatibility and cost differently. It is less one technology than a family of them, bickering across the radio spectrum. Choose the wrong band and you are locked into a multi-year deployment that can't reach the use case you actually needed.

A friendly heads-up: if a vendor quotes you MIFARE Classic 1K for anything security-sensitive in 2026, raise an eyebrow. Its encryption has been crackable with roughly $20 of hardware for over fifteen years. A fine choice for a gym locker; a terrible one for your building's front door.

• 125 kHz LF (low frequency) — the grandpa band: legacy proximity cards (HID Prox, EM4100, EM4200, T5577). Range 5-15 cm via card readers. Cheapest chip ($0.05-$0.15) but no encryption — every commodity NFC writer can clone the card UID. Still deployed for door-only access at low-security facilities; fine for a stockroom door, a genuinely bad idea for anything worth protecting.
• 13.56 MHz HF (high frequency, ISO 14443 / ISO 15693) — the main event and the dominant smart-card frequency. NFC chips like NTAG 213/215/216 ($0.05-$0.15), MIFARE Classic 1K ($0.10-$0.18), MIFARE Ultralight C ($0.07-$0.12), MIFARE DESFire EV2/EV3 ($0.65-$1.40), MIFARE Plus EV2 SL3 ($0.45-$0.85) and NTAG 424 DNA ($0.18-$0.30) all live here. Smartphone tap support is universal on iPhone (iOS 13+) and Android (5.0+).
• 860-960 MHz UHF (RAIN RFID, ISO 18000-63) — long-range cards (3-12 m) for parking, vehicle access, sports timing and large-venue badges. Chips like NXP UCODE 9 ($0.012-$0.018 wafer) and Impinj M730/M770 ($0.014-$0.020) make per-card cost extremely low. Smartphone-readable only with external UHF sled.
• Dual-frequency cards (HF + UHF combo) — why choose? These combine NFC tap-to-verify with UHF gate-throughput in a single piece of plastic. Premium $0.50-$1.50 per unit. Used at large stadiums and transit systems where the same card must work as a smartphone wallet AND a long-range gate badge.
• Smart-card chip security tiers — MIFARE Classic 1K is broken (Crypto-1 cipher publicly attacked since 2008); only use it where security doesn't matter. MIFARE DESFire EV3 and Plus EV2 use AES-128 with EAL5+ Common Criteria certification — the secure floor for hotel access, payment, transit and corporate badges. NTAG 424 DNA brings DESFire-grade AES-128 SUN authentication into the consumer NFC tier.

Real card families and where they're deployed in 2026

Knowing the chip family on your card tells you 80% of what you need about security, smartphone compatibility and cloning risk — and where a family lives says a lot about how much its owners trust it. The reference deployments below give procurement teams concrete benchmarks for sourcing decisions, arranged here as a ladder of trust.

The higher the rung, the more it costs a would-be cloner. The floor is "photocopy me for $20 of hardware"; the ceiling is the same silicon your bank trusts with your money.

• Hotel key cards — globally dominated by MIFARE Classic 1K (legacy) and MIFARE DESFire EV2/EV3 (modern installs). Marriott Bonvoy, Hilton Honors, IHG and Accor all moved to DESFire EV2/EV3 since 2020 because of the 2008+ MIFARE Classic Crypto-1 break. ASSA ABLOY VingCard, dormakaba Saflok, Salto and Onity are the lock vendors.
• Transit and metro — Octopus (Hong Kong, Sony FeliCa), Suica (Tokyo, FeliCa), Oyster (London, MIFARE DESFire), MetroCard (NYC, magstripe being replaced by OMNY DESFire EV3), Compass (Vancouver, DESFire). Most new transit deployments since 2020 use DESFire EV2/EV3 for AES-128 anti-cloning.
• Corporate and government ID — HID iCLASS Seos, MIFARE DESFire EV3, US Federal PIV (FIPS 201, Java Card OS) and German neuer Personalausweis (eID, Mifare Plus). Global Fortune 500 standardising on HID Seos + Apple Wallet / Google Wallet for hybrid plastic + mobile.
• Cashless payment — EMV contactless on Visa, Mastercard, Discover and Amex uses NXP-derived secure elements; banking-grade EAL5+ certification. Apple Pay and Google Wallet store the same EMV credentials in the phone Secure Element via tokenised PAN.
• Loyalty and brand — NTAG 213/215/216 dominate single-tap loyalty; NTAG 424 DNA for anti-counterfeit luxury (Estée Lauder, Hennessy, LVMH Aura). Chip selection drives the SUN or static-UID dichotomy that decides whether the card is clone-proof or trivially cloned at $20 of hardware.
