Warranty Seals

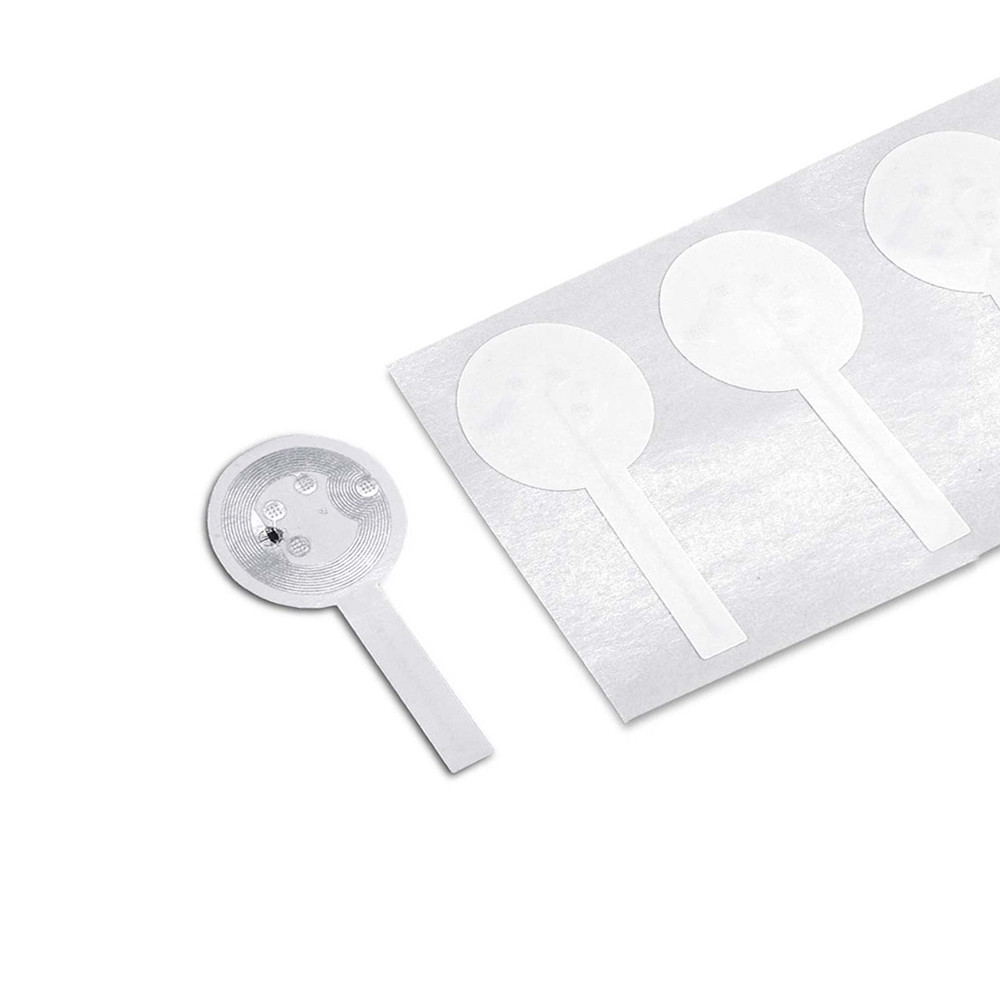

NFC Warranty Seal Tags
Destructible-Vinyl Seal
Quick answer
NFC warranty seal tags combine a destructible-vinyl label that fragments on removal with a NTAG 424 DNA chip carrying AES-128 SUN authentication + bridge-antenna CTTES tamper register — letting brands deploy a dual-layer tamper seal that delivers both physical visible-damage evidence AND a permanent digital tamper record on every NFC tap. Companion product to nfc-electronics-warranty-label, designed for high-value electronics, pharmaceutical packaging, evidence chain-of-custody, software-licensing dongles and luxury-goods box seals. Magnuson-Moss-compliant: tamper-evidence is informational, not auto-void.
- Dual-layer tamper evidence: destructible vinyl label fragments on removal AND NTAG 424 DNA bridge-antenna CTTES register sets permanently — physical visible damage + permanent digital record forever after.
- AES-128 SUN cryptographic authentication: every tap generates a single-use signed URL — seal counterfeiting is mathematically infeasible without write-only key extraction.
- Multi-vertical: high-value electronics, pharmaceutical packaging (EU FMD Article 5 ATD), evidence chain-of-custody (FDA 21 CFR Part 11 record system), software-licensing dongles, luxury goods + collectibles.
Used in these industries
Deployments where this product is referenced on our industry landing pages.
At a glance
Use these short answers to decide whether this page matches the project before moving into the detail.
Chip silicon
NXP NTAG 424 DNA TagTamper (NT4H2421Tx) — bridge-antenna CTTES register variant NXP NTAG 424 DNA (NT4H2421Gx) — AES-128 SUN, no tamper-loop variant
Label construction
Destructible vinyl face stock — fragments into 100+ pieces on removal attempt Defeats heat-gun + solvent + freeze-spray recovery techniques
Next step
Ready to move forward? Start your inquiry to get specific answers for this project.
Request NFC warranty seal quote- Tamper-evidence mechanism
-
- Conductive bridge-antenna trace at frangible weak-point
- Lift / cut / tear → trace severs → CTTES register sets permanently
- CTTES is one-way write — cannot be reset or forged by reassembly
- 'Tampered' status surfaced in SUN payload on every subsequent tap forever after
- Destructible-vinyl fragments cannot be reassembled to hide tamper event
- Form factors + sizes
-
- 30×15 mm — electronics + small packaging seal
- 50×20 mm — standard packaging seal
- 70×30 mm — large equipment seal + appliance enclosure
- Custom shapes (round / oval / die-cut silhouette) from MOQ 5,000
- Multi-piece seal-set: paired seals for envelope-style closures
- Substrate + adhesive
-
- Destructible vinyl 80 µm — calibrated frangibility
- Acrylic permanent adhesive (3M 467MP / 9472LE) — surface-energy ≥30 mN/m
- FDA 21 CFR 175.105 indirect-food-contact PSA option for pharma blister-pack
- Operating temperature −25 °C to +85 °C — shipping + storage compatible
- Cryptographic authentication
-
- AES-128 mutual authentication per ISO/IEC 14443-4 + ISO/IEC 9798
- SUN URL: PICCData (encrypted UID + counter) + CMAC signature
- Per-tag diversified key via CMAC-AES (NXP AN10922)
- 32-bit monotonic counter — replay defense + counter-anomaly clone detection
- Defense-in-depth anti-counterfeit stack
-
- Overt layer: holographic foil + brand logo + human-readable serial
- Semi-covert: GS1 DataMatrix or QR fallback for non-NFC phones
- Covert: micro-taggant particles in adhesive + UV-reactive ink + microtext
- Cryptographic: NTAG 424 DNA AES-128 SUN dynamic URL
- Per-seal serialisation: unique EPC + printed serial + cloud-registry binding
- Pharmaceutical regulatory framework
-
- EU FMD Directive 2011/62/EU + Delegated Reg 2016/161 Article 5 — Anti-Tampering Device (ATD)
- EU FMD Article 3 Unique Identifier — GS1 DataMatrix mandatory baseline
- NFC seal sits ON TOP of mandated DataMatrix (not in place of)
- ATD technology-agnostic — destructible vinyl + NFC accepted by EU NCAs
- Evidence chain-of-custody framework
-
- FDA 21 CFR Part 11 — Electronic Records / Electronic Signatures
- Audit trails + user authentication + time-stamping + data integrity
- Court chain-of-evidence: timestamped tap log + cryptographic UID anchor
- ICH E6(R2) GCP clinical-trial Investigational Medicinal Product (IMP) kits
- Application verticals
-
- Consumer electronics: laptop / phone / gaming-console box seal
- Warranty enforcement: equipment-enclosure seal — service-provider audit
- Pharmaceutical: medication blister + bottle + carton ATD layer
- Evidence chain-of-custody: court evidence bags + forensic containers + legal documents
- High-value goods: luxury packaging + collectibles + software-licensing dongles
- Backend integration
-
- REST API for SUN signature verification + CTTES tamper-state surfacing
- Audit-trail logging: timestamp + IP geolocation + user-agent per tap
- Brand-portal + warranty-CRM (Salesforce, Zendesk, MS Dynamics)
- FDA Part 11-validatable architecture (customer system-level validation required)
- Procurement
-
- MOQ 2,000 (provisioned), 50-100 non-provisioned engineering samples
- Lead time 12-18 business days (chip lot + destructible-vinyl die-cut)
- Encrypted UID-to-key CSV delivered separately from physical inventory
- RoHS / REACH compliant materials
Problems brands and warranty teams face with standard void stickers and physical seals
- Standard 'VOID' stickers provide only visual tamper evidence. They can be defeated with a heat gun or solvent in under 60 seconds and reapplied without visible damage, providing no actual security against a determined opener who wants to retain warranty coverage after unauthorised servicing.
- Consumer electronics brands processing 10,000-50,000 warranty claims annually cannot distinguish legitimate manufacturing defects from damage caused by unauthorised opening. Without digital tamper records, approximately 20-30% of out-of-warranty claims are paid out because the brand cannot prove seal violation.
- Counterfeit 'VOID' stickers are available on wholesale platforms for under USD 0.01 each, meaning a bad actor can purchase exact replicas of a brand's security seal and replace a broken seal after opening. Making printed tamper labels almost worthless as anti-counterfeiting measures for high-value products.
- Evidence chain-of-custody applications (court evidence bags, forensic containers, legal document seals) require an audit trail that proves whether and when a seal was broken. Paper records and visual inspection provide no timestamped, tamper-proof log that would satisfy chain-of-evidence standards.
- Pharmaceutical and medical device packaging requires tamper-evident seals that meet regulatory standards. Standard void stickers do not provide the digital verification trail required by FDA 21 CFR Part 11 or EU FMD for serialised product authentication.
How Proud Tek NFC warranty seals provide dual physical and digital tamper proof
Standard 'VOID' sticker / hologram / tamper-evident tape
- Heat-gun / solvent defeats VOID pattern in <60 seconds — no digital tamper record
- Counterfeit VOID stickers cost <USD 0.01 each on wholesale — replacement is trivial
- Hologram visually copyable with commercial print tech
- Tamper-evident tape: message-transfer pattern, no per-tap cryptographic verification
- 20-30% of out-of-warranty claims paid out because seal violation cannot be proven
Destructible vinyl + NTAG 424 DNA SUN + bridge-antenna CTTES (this page)
- Destructible vinyl fragments into 100+ pieces — heat-gun + solvent recovery defeated
- AES-128 SUN: every tap is single-use cryptographic — counterfeiting requires key extraction
- Bridge-antenna CTTES register sets permanently on lift / cut / tear — irreversible
- Digital tamper record + timestamp + IP geolocation logged forever after
- 35-50% out-of-warranty claim rejection-rate uplift documented in deployments
- Destructible vinyl label fragments into multiple pieces on any removal attempt. It cannot be peeled off intact and reapplied, eliminating the heat-gun and solvent defeat methods that work on standard void stickers.
- NTAG 424 DNA chip with bridge-antenna tamper loop permanently records the tamper event the moment the loop breaks. The 'tampered' status is irreversible and is reported on every subsequent NFC tap, providing a digital tamper record that cannot be cleared even if fragments are reassembled.
- Secure Dynamic Messaging (SDM) generates a unique cryptographic SUN URL on every NFC tap. The authentication is impossible to clone or replay, making seal counterfeiting economically unviable even for a sophisticated adversary.
- Consumer-facing verification page design is fully controlled by the brand — 'Authentic — Sealed' with a green checkmark for intact seals, 'Warning — Tampered' with date and time of tamper event for violated seals, using the brand's own domain and design.
- Serialised seals with unique EPC and printed serial number create an individual audit trail per seal, enabling the brand to pinpoint when and where each tamper event occurred across the entire product distribution chain.
Per-tap data published from a Proud Tek NFC warranty seal
- Physical layer: destructible vinyl fragments into 100+ pieces — visual tamper evidence.
- Digital layer: CTTES register sets permanently on bridge-antenna sever — irreversible.
- Cryptographic layer: AES-128 SUN signature single-use per tap — clone defense.
- Audit-trail layer: timestamp + IP geolocation + counter logged in brand backend.
- Forensic layer: counter-anomaly + geographic-impossibility detection flags suspected clones.
How tamper detection works
- The NFC label contains a conductive bridge-antenna loop (thin copper trace) that connects to the tamper detection input on the NTAG 424 DNA chip.
- When the label is intact, the loop is closed and the chip reports 'sealed' status (CTTES register = 0) in every NFC tap.
- When the label is peeled, cut or torn, the loop breaks. The chip permanently sets the CTTES register to 1 — recording the tamper event irreversibly.
- Every subsequent NFC tap reports 'tampered' status in the AES-128 SUN payload. This is irreversible, even if the label is glued back.
- The destructible vinyl label also fragments on removal, providing visible physical evidence of tampering.
- Result: dual-layer tamper evidence — digital (CTTES register) and physical (destroyed label fragments).
Applications
- Consumer electronics: seal packaging to prove the product has not been opened, returned or refurbished.
- Warranty protection: seal equipment enclosures to detect unauthorised servicing that voids the warranty (informational record per Magnuson-Moss FTC 2018 guidance — not auto-void).
- Pharmaceutical packaging: tamper-evident seal on medication boxes for patient safety + EU FMD Article 5 ATD compliance.
- Evidence and chain of custody: seal evidence containers, storage lockers and secure packaging with auditable tamper detection — FDA 21 CFR Part 11-validatable.
- High-value goods: seal luxury product packaging to prove the box has not been opened since leaving the factory.
- Software licensing: seal hardware dongles or license boxes to prevent unauthorised access.
Seal vs sticker vs tape
| Feature | NFC warranty seal (this product) | Standard void sticker | Tamper-evident tape |
|---|---|---|---|
| Physical tamper evidence | Yes (destructible vinyl, 100+ fragments) | Yes (VOID pattern) | Yes (message transfer) |
| Digital tamper detection | Yes (NTAG 424 DNA CTTES register) | No | No |
| Authentication | Yes (AES-128 SUN cryptographic) | No (easily replicated) | No |
| Remote verification | Yes (NFC tap from anywhere) | No (visual only) | No |
| Counterfeit resistance | Very high (AES-128 + write-only key) | Low (printable by anyone) | Low |
| Audit trail | Yes (timestamped, geolocated taps) | No | No |
NFC warranty seal timeline — from VOID stickers to dual physical-digital tamper architecture
- 1980s — VOID sticker baseline
Heat-shock VOID-pattern release liners enter consumer-electronics + pharmaceutical packaging — the baseline tamper-evidence technology that dominates for the next 30+ years before NFC alternatives emerge.
- 2011 — EU FMD Directive 2011/62/EU adopted
EU Falsified Medicines Directive establishes Article 5 Anti-Tampering Device (ATD) requirement on prescription medicine packaging — technology-agnostic but raises bar above plain VOID stickers.
- 2018 — FTC anti-tying enforcement + NTAG 424 DNA + iOS 12 background NFC
FTC issues warning letters to Sony / Microsoft / Nintendo / HTC / ASUS / Hyundai — 'warranty void if removed' stickers violate Magnuson-Moss § 2302(c). NXP launches NTAG 424 DNA AES-128 SUN; Apple iOS 12 enables background NDEF reading. Convergence point: tamper-evidence must be informational + cryptographic, not auto-void.
- 2019-2020 — NTAG 424 DNA TagTamper variant + premium-electronics adopters
NXP releases NTAG 424 DNA TagTamper (NT4H2421Tx) with bridge-antenna CTTES register; premium consumer-electronics + pharmaceutical brands deploy dual-layer destructible-vinyl + NFC seals on flagship lines.
- 2022 — DSCSA full enforcement Nov + EMVS production scale
US FDA DSCSA full enforcement Nov 2024 + EU EMVS end-point decommissioning at scale — cryptographic verification on top of GS1 DataMatrix becomes default architecture for pharma anti-counterfeit.
- 2023-2024 — EU ESPR DPP framework + battery passport + R2R
EU Reg 2024/1781 ESPR + EU Reg 2023/1542 Battery Reg + EU Dir 2024/1799 Right-to-Repair adopted — consumer-electronics circular-economy regulatory stack converges on cryptographic per-unit tamper evidence.
- 2025 — Smartphone Ecodesign in force + R2R transposition
EU Reg 2023/1670 Smartphone Ecodesign effective June 2025; EU Right-to-Repair transposition deadline 31 Jul 2026. Brands deploying NFC warranty seals today gain forward-compat with the entire regulatory stack.
- 2026 — Today: NFC warranty seal standard practice
Reference operating practice across premium-consumer-electronics, pharmaceutical-blister, evidence-chain-of-custody, software-licensing-dongle and luxury-goods-box programmes converge on destructible-vinyl + NTAG 424 DNA TagTamper + AES-128 SUN + GS1 Digital Link as the default dual-layer tamper-seal architecture.
Customisation
- Custom printing: your logo, brand colours, serial number and 'Tap to verify' instructions on the seal face.
- Custom shape: die-cut to match your packaging design (round, rectangular, custom silhouette).
- Serialisation: unique serial number printed and encoded on each seal for individual tracking.
- QR code backup: printed QR code on the seal surface for phones without NFC capability.
- Holographic overlay: add a holographic security layer for additional visual anti-counterfeit protection.
- Defense-in-depth stack: holographic foil + GS1 DataMatrix + micro-taggants + UV-reactive ink + NFC SUN.
Useful next pages
Use these linked product, guide and comparison pages to keep the next click specific and practical.
Related products
Other NFC authentication and tamper solutions.
Chip-level technical reference
Deep-dive specifications and chip-family comparisons relevant to this SKU.
FAQ
Can someone remove the seal without breaking it?
The destructible vinyl label is designed to fragment into small pieces when any removal is attempted. It cannot be peeled off in one piece. Even if someone carefully removes fragments and reassembles them, the conductive bridge-antenna tamper loop inside the label will be broken, and the NTAG 424 DNA chip will permanently set the CTTES (Counter Tamper Tamper Event Status) register to 1. There is no way to restore the 'sealed' status once the tamper loop is broken.
What does the consumer see when they tap the seal?
When a consumer taps the intact seal, their phone opens a branded verification page showing: 'Authentic. Sealed' with a green checkmark, along with the product details and warranty information. If the seal has been tampered with, the page shows: 'Warning. Seal Tampered' with a red alert, the date / time of the tamper detection and instructions to contact customer support. The brand controls the verification page design and messaging.
How is this different from the NTAG 424 DNA tamper-evident tag?
The warranty seal adds a destructible vinyl layer to the NTAG 424 DNA tag. The standard NTAG 424 DNA tamper tag has a bridge-antenna for digital tamper detection but uses a standard (non-destructible) PET label material. The warranty seal adds physical tamper evidence — the label itself fragments on removal, providing visual proof of tampering in addition to the digital CTTES tamper flag. Choose the warranty seal when you need both physical and digital tamper evidence; choose the standard NTAG 424 DNA tamper-evident tag for general-purpose authentication where physical fragmentation is not required.
Does an NFC warranty seal satisfy FDA 21 CFR Part 11 or EU FMD anti-tampering device (ATD) requirements for regulated products?
It depends on the regulatory framework. For EU Falsified Medicines Directive (2011/62/EU) Delegated Regulation 2016/161, Article 5 requires an 'anti-tampering device' on prescription medicine packaging but is deliberately technology-agnostic — destructible vinyl seals with cryptographic NFC verification generally meet the Article 5 intent and are accepted by most EU national competent authorities, although the packaging remains subject to Article 3 serialisation via GS1 DataMatrix regardless. For FDA 21 CFR Part 11 electronic-records use cases (chain-of-custody evidence, clinical trial IMP kits, forensic sealed containers), the NFC tap log combined with a validated back-end (audit trails, user authentication, time-stamping, data integrity) can function as an electronic record system — but Part 11 compliance is a system-level determination, not a tag-level claim, and must be validated by the customer's quality system per FDA guidance. We supply the cryptographic primitives (AES-128 SUN, unique chip UID, tamper flag) and tap-log infrastructure; Part 11 validation is the customer's responsibility.
For high-value electronics (laptops, mobile phones, gaming consoles) can the NFC warranty seal integrate with overt holograms, covert micro-taggants and serialised GS1 barcodes in the same seal?
Yes — high-value OEM anti-counterfeit programmes typically deploy a defence-in-depth stack, and the NFC warranty seal is designed to coexist with all of the standard overt and covert layers. Overt: holographic foil overlay (optically variable device visible to the naked eye), brand logo print, human-readable serial number. Semi-covert: GS1 DataMatrix or QR code printed on the seal face linking to the same verification URL for phones without NFC capability. Covert: micro-taggant particles in the adhesive, UV-reactive ink, microtext (all verifiable by brand-protection investigators using forensic tools). Cryptographic: NTAG 424 DNA AES-128 SUN dynamic URL, individual per-seal serialisation. The five layers serve different audiences — consumers tap the NFC, retailers scan the QR, customs officers visually verify the hologram, and forensic investigators confirm the covert taggant. The combined stack raises the counterfeiter's cost well beyond the margin on the counterfeit product, which is the economic objective of anti-counterfeit programmes.
Sources & references
Primary standards, OEM datasheets and regulatory documents cited by this article. All URLs were verified on the access date shown below.
- NTAG 424 DNA product family — NT4H2421Gx datasheet and SUN/SDM secure messaging
Primary chip silicon — AES-128 SUN cryptographic authentication, TagTamper bridge-antenna CTTES register variant for destructible-vinyl seal coupling.
- AN12196 — NTAG 424 DNA and NTAG 424 DNA TagTamper features and hints
Reference application note — SUN URL template + tamper-status surfacing + per-tap CTTES register read in SDM payload.
- FIPS PUB 197 — Advanced Encryption Standard (AES)
Federal Information Processing Standard for the AES block cipher used as the SDM cryptographic primitive.
- 21 CFR Part 11 — Electronic Records; Electronic Signatures
FDA framework for electronic records + electronic signatures — NFC tap log + validated backend can function as Part 11 record system; system-level validation customer's responsibility.
- Commission Delegated Regulation (EU) 2016/161 — safety features on prescription medicinal packaging (Article 5 anti-tampering device)
EU FMD Article 5 ATD — technology-agnostic anti-tampering device requirement; destructible vinyl + NFC accepted by most EU NCAs. Article 3 GS1 DataMatrix mandatory baseline.
- ISO 17712:2013 — Freight containers — Mechanical seals (high-security seal classification)
Mechanical seal classification framework — comparison reference for adjacent ISO 17712 high-security mechanical seals (RFID bolt seals).
- Global Trade in Fakes — 2021 OECD/EUIPO report on trade in counterfeit and pirated goods
Global counterfeit trade analysis underlying the brand-protection use case for cryptographic anti-counterfeit seals.
- NFC Forum Type 4 Tag Technical Specification
Native phone-readable NDEF-over-Type-4-Tag specification — basis for app-free consumer + brand-protection-investigator authentication.
- FTC 2018 Warning Letters — 'Warranty Void If Removed' Stickers
FTC enforcement establishing that void-if-removed stickers violate Magnuson-Moss § 2302(c) anti-tying. NFC warranty seal tamper-evidence is INFORMATIONAL not auto-void — preserves consumer statutory rights.
- ICH E6(R2) Good Clinical Practice — Investigational Medicinal Product handling
GCP framework for clinical-trial IMP kit chain-of-custody — destructible-vinyl + NFC seal architecture compatible with ICH E6(R2) audit-trail requirements.
Proud Tek is a Shenzhen-based RFID & NFC manufacturer supplying hotel chains, transit operators, event venues and retail brands worldwide. Every order includes free samples, RF testing and dedicated project support.
Get a Quick Quote
Tell us about your project and we'll respond within one business day. Fields marked (asterisk) are required.
