How To Choose RFID Readers And Writers

Protocol first: LF, HF/NFC, and UHF decide everything

Every established RFID program has a drawer. In it lives the reader that got bought first — before anyone pinned down what it actually had to read — and now serves out its days holding paperwork flat. It powers on. It reads beautifully. It simply answers a question nobody asked. Frequency and protocol are the first filter, and getting this wrong invalidates every downstream decision. A UHF reader at 902-928 MHz cannot read a MIFARE Classic card at 13.56 MHz; an HF reader cannot inventory a pallet of UHF-tagged cartons at 5 metres. Start with the credential or asset you need to read, confirm its frequency band and air-interface standard (ISO/IEC 14443 Type A/B, ISO/IEC 15693, ISO/IEC 18000-63 / EPC Gen2 v2), and only then open the reader catalogue.

• LF (125-134 kHz) readers target legacy populations: EM4100, EM4305, T5577, HID Prox II (H10301 26-bit format), HITAG 2, ISO 11784/11785 animal identifiers, and automotive immobiliser transponders. Typical read distance is 2-10 cm with 1-3 cm more common in real enclosures. Data rates top out at 4 kbit/s, there is no meaningful multi-tag anticollision, and readers like the pcProx Plus or the HID OMNIKEY 5127CK cost $60-180 — the cheapest tier in the category. Choose LF only when the installed credential base is already LF; do not design new systems around it.
• HF/NFC at 13.56 MHz covers MIFARE Classic 1K/4K, MIFARE Plus EV2, MIFARE DESFire EV2/EV3, NTAG 213/215/216, NTAG 424 DNA, ICODE SLIX/SLIX2, FeliCa Standard/Lite-S, and Topaz/Jewel. Two air interfaces matter here: ISO/IEC 14443 Type A/B (proximity, 10 cm, ~106-848 kbit/s) and ISO/IEC 15693 (vicinity, 30-70 cm with vicinity antennas). Desktop readers such as the ACR122U (PC/SC, Type A only) and the ACR1252U (PC/SC + CCID + SAM slot) sit at $30-90; SAM-socketed HSM-grade variants like the Feitian bR500 sit at $120-200. All current iPhones from the iPhone 7 onward and nearly every Android since ~2012 can double as HF readers via Core NFC or the Android NFC API when a physical reader is overkill.
• UHF at 860-960 MHz (EPC Gen2 v2, ISO/IEC 18000-63) covers Impinj Monza R6/R6-P/M730/M750/M770/M800, NXP UCODE 8/9/9xe/DNA, Alien Higgs-4/9/EC/CL, EM Microelectronic 4423, and Kathrein tag ICs. Free-air read distance reaches 10-15 metres with a circularly-polarised 8-9 dBic panel antenna and +30 dBm EIRP; in-situ with metal, liquids and mixed packaging this collapses to 1-4 metres. A single reader with dense-reader-mode anticollision can sustain 1,000+ tags per second in the field; that performance envelope is the reason UHF dominates supply chain, apparel and dock-door use cases. No phone currently reads UHF. A Bluetooth sled such as the Zebra RFD40 or the TSL 1128 is required.
• Regional regulation splits UHF into incompatible sub-bands that carry real procurement consequences: FCC Part 15.247 (902-928 MHz, 50 hopping channels, +36 dBm EIRP) for North America; ETSI EN 302 208 v3 (865.6-867.6 MHz, 4 channels at +33 dBm ERP) for Europe; ARIB STD-T106 (915.7-929.7 MHz, +36 dBm EIRP) for Japan; SRRC (920.5-924.5 MHz) for mainland China. An Impinj Speedway R420 part number ends in FCC, ETS, JPN or PRC and the radio refuses to boot on any other band. Confirm the deployment country before purchasing, and hold back one spare part until the FCC/CE/SRRC label has been verified on receipt.
• Multi-protocol readers exist but their premium is rarely justified. HF+UHF desktop combos like the Arete Pop or Invengo XC-RF800 run $350-700, roughly 2.5x a dedicated HF reader plus a UHF USB dongle. Keep them for single-operator issuance desks that truly need both (an asset-tracking kiosk that issues employee HF badges and UHF asset tags at the same station); for every other workflow, two dedicated readers are cheaper, easier to hot-swap, and less coupled in the procurement lifecycle.
• Protocol determines the cost of being wrong. An LF system cannot be 'upgraded' to HF by swapping the reader. The whole tag population must be reissued, which at 50,000 credentials and $1.20 per card is $60,000 of waste plus 120-200 labour-hours of re-enrolment. HF-to-UHF migrations cost even more because the antenna design changes material and footprint. Lock protocol first, and treat reader brand choice as the reversible decision within that protocol.
• Air-interface revision is not trivia: ISO/IEC 14443-3 2016 reduces MIFARE Classic crypto (CRYPTO1) to 'not recommended'; ISO/IEC 18000-63:2015 absorbed EPC Gen2 v2 features like untraceable-mode and file privileges. A modern reader will support both revisions, but older industrial fixed readers built pre-2014 (first-generation Speedway R420s shipped in 2009) may lack v2 features like Authenticate and FileOpen that a modern credential requires. Check firmware version, not just model number.

Reader class: desktop, fixed, handheld, integrated

After protocol, the reader class is the next major decision and the one where buyers most often swap the labels. Each class is purpose-built for a different operational pattern (one-at-a-time issuance, hands-free choke-point detection, mobile spot-check audits, or OEM module embedding) and mixing them up is responsible for most of the shelf-ware RFID hardware in the industry. Match the class to the dominant workflow first, then compare models inside that class.

• Desktop encoders (USB, PC/SC or HID keyboard emulation) handle credential issuance one card at a time. Mainstream choices: ACR122U (Type A only, $30-50, good for development and low-duty office use); ACR1252U ($60-90, dual-interface with SAM, the workhorse of hotel front desks); HID OMNIKEY 5022 ($120-180, contactless only, robust driver stack); HID OMNIKEY 5422 ($180-260, dual-interface contact + contactless with optional SAM); Feitian bR500 ($160-220, Chinese-market alternative with free SDK). Duty cycles for these devices assume 50-500 taps per day; a lab reader on a Marriott front desk doing 2,000+ daily taps fails inside 6-18 months.
• Fixed gateway readers mount above or beside a choke point and read continuously as items cross. Canonical list: Impinj Speedway R420 (legacy $1,200-1,600 now succeeded by the R700 series at $1,600-2,100, 4-antenna, LLRP 1.1, PoE+); Zebra FX7500 ($1,100-1,500, 2 or 4 antennas, Zebra RFID API and LLRP); Alien ALR-F800 ($1,400-1,800, 4 antennas, Alien Reader Protocol or LLRP); Kathrein RRU 4500 ($1,800-2,400, industrial-hardened, heavy EU retail and logistics footprint). Antennas sold separately at $180-420 each plus LMR-240 or LMR-400 coax at $3-8 per foot; budget 1.8-2.5x the reader headend price for a complete 4-antenna installation.
• Handheld readers pair mobile audits with barcode scanning, cycle counts, asset verification and spot checks. The current reference set: Zebra RFD40 ($1,800-2,400, sled mounted on a TC21/TC26 scanner-phone); Zebra MC3390R ($2,200-2,900, integrated gun-form); TSL 1128 ($1,600-2,100, Bluetooth sled); CS108 / Convergence Systems ($900-1,400, lower-cost alternative); Chainway C72 ($1,200-1,800, Android 12 integrated terminal). All target a working read distance of 2-5 metres with typical read rate of 200-600 tags per second; pilots that push UHF handhelds to 8+ metres usually fail at fielding time because users cannot hold the gun steady enough.
• Integrated OEM modules embed inside another product. A door lock, a kiosk, a vending machine, a medical device, a rental locker. Examples: NXP PN532 / PN5180 NFC front-ends ($3-12 at module scale); Impinj RAIN RFID Indy R2000 reader chip (OEM sample $40-80, finished M6e module $120-180); ThingMagic / Jadak M6e-Nano ($180-260); Feig Electronic LR26xx OEM boards ($350-600). These require firmware-level integration rather than a PC-side SDK; volume economics make them dramatically cheaper at 5,000+ units than packaged desktop readers, but engineering-integration time is 6-16 weeks, not an afternoon.
• Industrial fixed-reader portals are a sub-class of fixed gateway that deploy multiple antennas around a read zone: retail overhead dock doors with 4-8 antennas; race-timing start/finish mats with 2-4 ground-plane antennas; warehouse conveyor tunnels with focused near-field antennas such as the Impinj Guardwall. A dock-door portal from Impinj xPortal or Zebra MotionWorks runs $8,000-24,000 installed per door, including antennas, cabling, photoelectric trigger, PoE+ switch and basic middleware. These are enterprise deployments; do not drop them in a retrofit budget.
• Near-field-coupled point-of-sale readers, bulk-item tunnel readers and self-checkout pads each have their own subclass. The Impinj xArray ceiling reader (4-12 m² coverage, ~$3,500) and the Checkpoint Systems OM-1 overhead antenna ($2,200-2,800) occupy retail store-zone hardware; the NXP CLRD40x and the Feig LRU500i cover laundry tunnel and conveyor scenarios. Model-level picking inside each subclass depends on ceiling height, mounting geometry and interference from adjacent metal shelving, which no datasheet predicts accurately.
• Boundary cases between classes blur with smaller deployments. A Bluetooth handheld docked at a kiosk effectively becomes a desktop reader; a fixed-reader module with a near-field antenna on a conveyor behaves like an integrated module. Classify by the dominant operational pattern (tap by a person, hands-free pass-through, spot-check walk-around, or embedded behind a UI) rather than by the enclosure shape.
• Spare-pool logistics vary by class: desktop encoders fail at 1-3% annually in commercial use and spares cost $30-200 each; handhelds fail at 5-12% annually (drops, battery wear) and spares cost $1,500-3,000 each; fixed readers fail at 2-5% annually (surge events, environmental) and spares cost $1,200-2,500 plus installation. Budget spare ratios at 5% for desktop, 8-12% for handheld, 3-5% for fixed. Otherwise the inevitable replacement cycle becomes an emergency procurement.

SDK, driver and operating-system fit

The reader's SDK, driver and OS support decide whether the reader integrates with production software at all. Skip this check and you end up with the cruelest kind of hardware: the kind that works flawlessly and still cannot be used. The reader is not defective — it reads every credential you hand it — it simply cannot speak to the one codebase the team actually needs to ship. Verify SDK, driver and OS fit before signing the purchase order, not after commissioning.

• PC/SC (Personal Computer/Smart Card) v2.01.14 is the cross-platform interface standard for contact and contactless smart-card readers. Supported natively on Windows (WinSCard API), macOS (CryptoTokenKit / pcsc-lite) and Linux (pcsc-lite with ccid driver). ACR122U, ACR1252U, HID OMNIKEY 5022, 5422, 5127CK, Feitian bR500 and dozens of others enumerate as PC/SC readers and can be driven by pyscard (Python), jnasmartcardio (Java), node-pcsclite (Node.js) and the winscard.h headers (.NET / C++). PC/SC is the safest integration path for any desktop HF/NFC deployment.
• Vendor-proprietary SDKs remain the norm for UHF: Impinj Octane SDK (Java, .NET, Python wrapper; LLRP 1.1 under the hood); Zebra RFID SDK (C, Java, .NET, Xamarin, iOS, Android); Alien Reader Protocol library (Java, .NET); Feig OBID-ISO SDK (C, .NET, ActiveX, Linux shared object); ThingMagic Mercury API (C, Java, .NET). Each SDK assumes a specific language stack and major-version range; a .NET 4.8 SDK does not drop into a .NET 6 project without interop glue, and a Java SDK from 2018 may not compile on JDK 17 without dependency surgery.
• LLRP (Low-Level Reader Protocol, EPCglobal ratified 2010, ISO/IEC 24791-5) is the vendor-neutral fixed-reader interface for UHF. Impinj Speedway, Zebra FX series, Alien ALR series, Motorola/Symbol XR-series and Kathrein readers all speak LLRP. Open-source libraries like sllurp (Python), llrp-go (Go) and llrp-toolkit (Java) keep inventory software portable across vendors. Choose LLRP for any multi-vendor or vendor-hedged deployment; proprietary SDKs trade portability for richer features (fast-inventory modes, optimised power profiles) that LLRP does not expose.
• Mobile SDKs make or break Bluetooth sled deployments. iOS support depends on MFi (Made for iPhone) certification: Zebra RFD40/RFD90 ships with an iOS SDK and MFi registration; TSL 1128 supports iOS and Android; CS108 supports Android primarily with a late-added iOS path; Chainway integrated Android terminals do not need iOS at all. Development effort on iOS runs 1.5-2x Android because of MFi hardware-accessory-protocol constraints, Bluetooth classic vs BLE selection, and Core Bluetooth background-mode rules.
• Operating-system drivers diverge along minor-version boundaries: a reader that 'supports Windows 10' may not support Windows 11 24H2 or Windows Server Core 2022; Linux kernel 5.x to 6.x transitions break hotplug rules for USB CCID; macOS 14 Sonoma introduced new system-extension approval flows that break old kext-based drivers. Always test on the exact OS build the production environment runs, not on a current developer laptop.
• Embedded and headless scenarios add another constraint: kiosks running Ubuntu Core, Android Things (now deprecated, replaced by AOSP-based builds), Windows 10 IoT Enterprise LTSC, or Yocto-based custom Linux distributions require drivers compiled for those kernels, not pre-built packages. Confirm the reader ships with source for the Linux driver so it can be recompiled for the target kernel, or confirm an .ipk / .deb exists for the specific distribution.
• SDK longevity matters when the reader is a 5-10 year asset. Impinj Octane SDK has shipped stable major-version releases since 2014 (v2.x through v3.x); Zebra continues to maintain the RFID Mobile SDK across Android 11-14; NXP has committed to NTAG SDK samples in GitHub but does not guarantee API stability across major SDK bumps. Factor a 2-year SDK migration effort into the total cost of ownership for any deployment expected to outlive a typical vendor SDK cycle.
• Windows 11 ARM, Apple Silicon (M-series) and embedded ARM64 Linux are now common targets where older drivers stall. ACR122U drivers on Apple Silicon work under Rosetta 2 but are sluggish; native arm64 drivers from Advanced Card Systems shipped in 2023. Confirm native-architecture driver availability before the first Mac Studio or Surface Pro X enters the fleet.

Use-case class: lab, desktop issuance, live operational

Readers serve three structurally different use cases and the right reader for one is usually wrong for the others. Separating these upfront (rather than hoping a 'flexible' model covers all three) prevents the two most common failures in this category: over-specifying a lab reader for commercial duty, and under-specifying a commercial reader against industrial environments. Define the duty cycle, the environment and the operator profile before the model-level comparison.

• Lab and prototyping readers (ACR122U, ACR1252U, Proxmark 3 RDV4, ChameleonMini, Flipper Zero for low-power lab use) cost $30-400 and optimise for documentation, open-source library support and debugging tools. ACR122U is supported by libnfc, pyscard, nfcpy, Proxmark's standalone client, and a long tail of university research code. Expect 50-500 reads per day in this tier; the duty cycle spec sheet numbers (10,000-30,000 card insertions) are optimistic for anything more.
• Desktop issuance readers for hotel front desks, office badging, visitor management and library self-issue need commercial duty cycle, a long MTBF and a documented SDK. HID OMNIKEY 5022 (rated 500,000 insertions, MTBF >100,000 hours), ACR1252U (rated 100,000 insertions), Feitian bR500 (rated 50,000 insertions with SAM-slot for encoding) and HID OMNIKEY 5422 (dual-interface, 100,000 insertions) cover this tier at $60-260. Hotel front desks do 800-3,500 issuances per property per month; choose for duty cycle first, aesthetics second.
• Live operational fixed readers sit on dock doors, overhead retail portals, race start/finish mats and conveyor tunnels. Impinj Speedway R700 (4 antennas, +31.5 dBm, PoE+, LLRP 1.1), Zebra FX9600 (4-8 antennas, industrial), Alien ALR-F800 (4 antennas, ARP/LLRP), Kathrein RRU 4500 (IP65 industrial) and Impinj xPortal (all-in-one portal for retail supplier portal deployments). Industrial environments demand IP54-IP65 rating, -20°C to +65°C operating range, and surge-protected Ethernet; consumer-class readers fail within weeks outside a climate-controlled retail floor.
• Handheld operational readers for retail cycle counts, warehouse spot checks, airport asset tracking, hospital inventory audits, and oil-and-gas field service need rugged enclosures (MIL-STD-810G drop test, IP54+), 8-12 hour batteries, hot-swap battery design and barcode-scanner combo. Zebra RFD40 (with TC21/TC26 scanner phone), Zebra MC3390R (integrated gun), TSL 1128, Chainway C72, Bluebird EF500R and Janam XT2 cover this space. Fleet-of-50+ handheld deployments need MDM (mobile device management) integration (SOTI, VMware Workspace ONE, Microsoft Intune) factor this into procurement.
• Do not cross-use across classes. A lab ACR122U on a 24/7 front desk fails at ~3-6 months. A $3,000 Impinj Speedway on a hotel front desk is overkill (no Wi-Fi users, one credential at a time, no LLRP-friendly client software). A handheld gun at an issuance desk is ergonomically worse than a USB puck. Specify the use case before the model; resist the temptation to 'future-proof' by buying up a tier.
• Environmental rating drives roughly 30-80% of the price delta inside each class. IP54 tolerates dust and splashing (indoor warehouse); IP65 tolerates dust and low-pressure water jets (washdown, light outdoor); IP67 tolerates temporary immersion (food processing); IP68/IP69K tolerates high-pressure washdown (dairy, meat, pharmaceutical). A Zebra FX7500 in IP53 enclosure is $1,200; the IP65-rated FX9600 in the same configuration is $2,100. Specify the rating from the environmental assessment, not from 'we might need this someday'.
• Temperature range and thermal design are class-defining: freezer-grade handhelds (Zebra MC3300xR with -30°C battery kit) are $400-600 more than ambient-grade equivalents; industrial fixed readers rated -40°C to +70°C (Kathrein RRU 4500, Feig LRU3500) cost 40-60% more than their +0°C to +55°C indoor siblings. Buy for the real environment, not the spec sheet; a cold-chain deployment that specifies a +0°C reader will die at the first −10°C shift.
• Certification requirements for live operational deployment vary by vertical: FDA 21 CFR Part 11 electronic-records signatures for pharma-grade readers; UL 294 for access-control readers; ATEX / IECEx Zone 2 for oil-and-gas installations; NEMA 4X for food-processing washdown. Certification adds 6-20 months to a reader line's time-to-market, which is why fewer than 20% of consumer-class readers have any of these; check the datasheet explicitly when the vertical demands it.

Read distance, antenna and environment

Read distance is the number buyers ask about first, but it is the output of the antenna, the transmit power, the tag inlay and the RF environment. Not a reader specification. The same Impinj Speedway R700 that reaches 12 metres in an empty warehouse aisle reads 1.5 metres across a loaded metal cart, and the difference is never in the reader datasheet. Treat read-distance specs as lab ceilings, plan the real deployment around antenna selection and site-survey measurements.

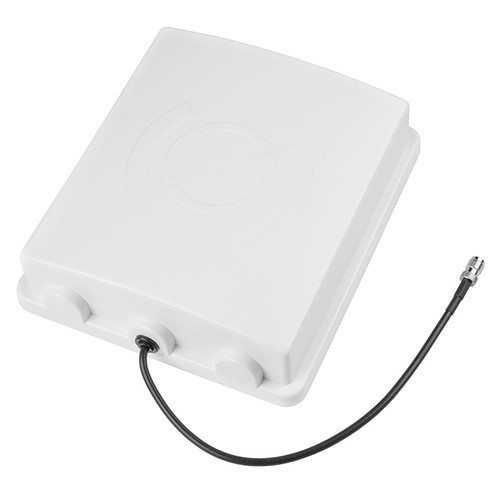

• Antenna dominates range more than reader transmit power. A +30 dBm EIRP Impinj Speedway with an 8.5 dBic Times-7 A5020 panel antenna reaches 10-12 metres free-air; the same reader with a 5 dBic near-field antenna reaches 1.5 metres by design (it is tuned to narrow the beam, not extend it). Antennas are typically purchased separately at $180-420 each for panel antennas and $220-550 each for circularly-polarised wide-aperture antennas; cabling attenuation at 3-5 m of LMR-240 costs another 1.5-2.5 dB of link budget.
• Environmental attenuation is aggressive and specific: water-rich content (beverage bottles, meat, plants) attenuates by 8-20 dB; metal surfaces reflect and cancel unless tags are mounted on matched metal-skin substrates (Confidex Silverline, Xerafy Dot XS, Metalcraft Universal Mini); dense cardboard attenuates by 2-4 dB per metre when stacked; concrete walls block UHF entirely. The same tag at 4 m free-air can fail completely at 0.6 m when surrounded by a metal stillage.
• Tag orientation matters at the dB level. Linear-polarised reader antennas lose 3 dB when the tag antenna rotates 45° off axis and 20+ dB at 90°; circularly-polarised reader antennas only lose 3 dB over the full orientation range but deliver 3 dB less peak gain. Choose circular polarisation when tag orientation is unpredictable (dock doors, pallets) and linear when orientation is controlled (conveyor with fixed product presentation).
• HF/NFC operates at 2-10 cm by design, not by accident. The 13.56 MHz magnetic coupling falls off with the 6th power of distance for the near-field and the 2nd power for the radiating field; once the reader-to-tag gap exceeds about 20 cm there is no energy to read. If a use case 'needs longer HF range', the protocol is wrong, not the reader. Move to UHF, not a higher-power HF amplifier.
• Multi-tag concurrency is a UHF capability and an HF limitation. UHF readers execute Q-algorithm anticollision and slotted ALOHA to read 100-1,000 tags per second in the field (Impinj M800 chip sensitivity of −25.5 dBm drives the high end). HF readers read one credential at a time. ISO/IEC 14443 selects a single PICC, authenticates it, and moves on. Bulk inventory therefore requires UHF; single-tap credentialing requires HF, and no amount of reader upgrade bridges the gap.
• Interference from adjacent readers ('reader collision') requires a dense-reader-mode plan. ETSI Europe uses Listen-Before-Talk (LBT) with 4 channels and 200 ms slot times; FCC North America uses 50-channel hopping (FHSS) with random channel hop. Two UHF readers in the same room without coordination see 30-60% throughput loss; a site-wide reader manager (Impinj ItemSense, Zebra MotionWorks, Turck RFID Manager) coordinates channels and timing for dense deployments.
• Antenna mounting plane affects 2-3 dB of link budget through coupling to structural metal. A panel antenna mounted directly on a metal dock-door frame loses ~3 dB of gain; the same antenna on a plastic standoff 10-15 cm off the frame recovers most of it. Budget for standoff brackets and test both configurations during commissioning.
• Site surveys with a portable spectrum analyser (Tektronix RSA306B, Anritsu MS2090A) reveal interference from nearby 900-MHz DECT phones, industrial ISM Wi-Fi, cellular small cells and LTE uplinks at 800-960 MHz. Plan the site survey as a 1-2 day engagement at any deployment with more than 4 UHF readers; catching a neighbouring cellular site's interference before installation saves 4-8 weeks of post-commissioning debugging.

Procurement, pricing and volume economics

RFID reader pricing spans three orders of magnitude, from $30 development pucks to $3,500 enterprise gateways to $18,000+ integrated portal systems. Matching the class to the real use case is the largest single cost lever in the entire selection; the second-largest is negotiating volume pricing directly with manufacturers rather than paying catalogue prices through a distributor. Know both levers before opening the RFQ.

• Entry-level HF/NFC desktop tier ($30-80) covers ACR122U, ACR1251U, Feitian bR301 and uTrust 3700 F. Suitable for development, lab work, low-duty office use up to 200-500 taps per day. Drivers and SDKs are uniformly PC/SC-based and well documented. Not suitable for commercial hotel, transit or healthcare duty cycles.
• Commercial HF/NFC desktop tier ($80-260) covers ACR1252U, HID OMNIKEY 5022/5422, Feitian bR500, Identive Cloud 4700 F, and Reiner SCT cyberJack RFID komfort. Rated for 50,000-500,000 insertions, MTBF 100,000+ hours, SAM-slot options for key storage. Appropriate for hotel front desks, airline check-in, pharmacy POS, government service desks at volumes up to 5,000 taps per day per unit.
• Entry-level UHF desktop / module tier ($150-450) covers the Impinj RAIN RFID Indy R2000 developer kit, ThingMagic USB Plus, Invengo XC-2610, Feig USB HF+UHF combo and generic Chinese-market USB UHF desktops. Serialises at 2-6 m free air with dipole antennas; useful for encoding tables, low-throughput issuance and software development. Not industrial.
• Enterprise fixed UHF reader tier ($700-3,500 per reader) covers Impinj Speedway R700, Zebra FX7500 / FX9600, Alien ALR-F800, Kathrein RRU 4500, Feig LRU500i, Caen A828EU. Add $180-420 per antenna and $3-8 per foot of LMR-240 / LMR-400 coax; a 4-antenna fixed reader install lands between $1,600 and $5,200 in hardware before labour and PoE+ infrastructure.
• Handheld UHF reader tier ($900-4,500) covers the Zebra RFD40, Zebra MC3300xR / MC3390R, TSL 1128, CS108, Chainway C72 / C66 series, Alien ALH-9011, Nordic ID Sampo S2. Sold as devices on 2-3 year warranties, not as consumables. Factor spare-pool planning at 8-12% of fleet size, plus MDM licencing at $3-12 per device per month.
• Industrial portal systems ($8,000-24,000 installed per door) bundle multiple antennas, a fixed reader, photoelectric trigger sensors, PoE+ injector/switch, middleware (Impinj ItemSense or Zebra MotionWorks) and installation labour. Retail dock-door deployments at major brands (Walmart, Target, Nordstrom) land in this price band per portal; plan 1-3 day installation per door.
• Volume discounts are real and material at 50+ units. List-price ACR1252U is $75; direct-from-Advanced-Card-Systems OEM pricing at 1,000 units is $38-44. Impinj Speedway R700 list is $1,595; authorised-integrator 250-unit pricing is $900-1,050. Negotiate directly with the manufacturer or an authorised integrator rather than paying distributor catalogue prices for any deployment exceeding ~50 units.
• Total cost of ownership (TCO) over 3 years typically runs 2.2-3.5x the reader hardware spend. Add 20-35% for antennas, cabling, mounting; 15-25% for licencing and middleware; 20-40% for deployment labour and site survey; 8-15% for spares; 5-12% for annual maintenance. A $1,600 fixed reader becomes a $4,000-5,600 line item once installed and running, and the reader purchase is roughly 30% of the deployed cost.

Vendor and SDK comparison — fixed UHF, handheld UHF and HF/NFC desktop reader shortlists

Beyond the class and protocol decision, the procurement shortlist within each class consolidates around a small number of vendors that have demonstrated multi-year SDK stability, certification coverage and integrator reach. The shortlists below summarise the realistic candidates as of mid-2026, with the SDK and certification context that determines fit. Specific datasheet specifications change per firmware revision; verify the model + firmware combination against the exact deployment region before purchase.

• Fixed UHF reader shortlist (enterprise, USD 1,200-3,500 reader headend). Impinj R700 series — current Impinj enterprise reader (the R720 reached end-of-life per Impinj's published customer notification, with the R700 named as the upgrade path; the upgraded R700 ships with a dual-core 1 GHz 64-bit ARM A53, 64-bit Linux 6.6 OS and 2x processor / 3x memory headroom over the original R700, with firmware 9.0.1+ required for ETSI EU RED compliance effective 2025-08-01). Zebra FX9600 — 4 or 8-antenna industrial alternative, IP53 ambient or IP65 with optional housing, Zebra Reader SDK and LLRP. Alien ALR-F800 — 4-antenna mid-tier with Alien Reader Protocol or LLRP. Kathrein RRU 4500 — IP65 industrial-hardened with strong EU retail and logistics footprint. All four speak LLRP for portability; vendor SDKs add proprietary features (Impinj Autopilot, Zebra DirectionDetection).
• Handheld UHF reader shortlist (USD 900-4,500). Zebra RFD40 — sled mounted on a TC21/TC26 scanner-phone, MFi for iOS, leading retail-cycle-count platform. Zebra MC3390R — integrated gun-form, Android, popular in DC and back-of-house. TSL 1128 — Bluetooth sled, iOS / Android, MFi, balanced battery life. Chainway C72 / C66 — Android-integrated terminal, lower-cost alternative with full Java/Kotlin SDK. CS108 — Convergence Systems, Android focus, lower price band. Bluebird EF500R and Nordic ID Sampo S2 cover industrial Europe / specialty verticals. All major handhelds support LLRP-equivalent or vendor-SDK paths for inventory, with battery and ergonomics typically the differentiator at fleet scale.
• HF/NFC desktop reader shortlist (USD 30-260). ACR122U (USD 30-50) — PC/SC, Type A, NFC Forum reader, lab and prototyping grade, 200-500 taps/day duty cycle. ACR1252U (USD 60-90) — PC/SC, dual-interface, NFC Forum certified, SAM slot, the workhorse of hotel front desks at 800-3,500 taps/day per property. HID OMNIKEY 5022 (USD 120-180) — contactless only, robust driver stack, rated 500,000 insertions, MTBF 100,000+ hours. HID OMNIKEY 5422 (USD 180-260) — dual-interface contact + contactless with optional SAM, the enterprise-issuance workhorse for office badging. Feitian bR500 (USD 160-220) — Chinese-market alternative with free SDK, SAM slot. All speak PC/SC v2.01.14 cross-platform.
• Multi-protocol HF+UHF combos (USD 350-700). Invengo XC-RF800 and Arete Pop are the recurring options. Premium of roughly 2.5x a dedicated HF desktop plus a UHF USB dongle, justified only when one operator workflow genuinely needs both protocols at the same station. For separate workflows, two dedicated readers are simpler, cheaper and easier to hot-swap on failure.
• Reader certification coverage matters per region. Impinj R700, Zebra FX9600, Alien ALR-F800 ship in distinct FCC, ETS, JPN and PRC variants — the radio refuses to boot on the wrong band, and the part-number suffix encodes the region. ACR122U / ACR1252U / OMNIKEY 5022/5422 are NFC Forum certified and CE / FCC compliant for global use as HF/NFC PC/SC readers. For washdown food and pharma applications, confirm IP65/IP67/IP69K rating per the environmental assessment, not from 'we might need this someday'.

Proof-of-workflow pilot

The pilot for reader selection is not about reading distance or datasheet features. Those are already documented. It is about whether 2-3 candidate readers can run the real workflow end-to-end against the real credentials on the real operating system. A disciplined 2-4 week pilot, measured quantitatively with exit criteria set upfront, eliminates 90% of the post-deployment regret in the category. Budget for the pilot explicitly; skipping it is the most expensive false economy in reader procurement. The reader that survives a real pilot is rarely the one with the best datasheet — it is the one still answering at the end of a long shift, on the exact machine it will live on, after everything that can go wrong already has.

1. Step 1
   Choose 2-3 candidate readers that differ on a structural dimension: brand (Impinj vs Zebra), interface (USB vs Ethernet vs Bluetooth), SDK language (.NET vs Java vs Python), or class (desktop vs handheld vs fixed). Narrow minor variants of the same product line into one candidate. The pilot is for deciding between categories, not between SKUs.
2. Step 2
   Run the full workflow end-to-end: read the credential or asset, pass the data to the production application, write the result back to the card if needed (encoding, UID rewrite, sector update), trigger the downstream action (door unlock, inventory post, audit log entry). Measure per-operation latency (target: <500 ms for desktop issuance, <1.2 s for handheld audit, <200 ms for fixed-reader choke-point) and error rate across 500-1,000 real operations per reader.
3. Step 3
   Test on the exact target operating system and hardware: Windows 11 24H2 on the actual ThinkPad model, Ubuntu 22.04 on the Raspberry Pi CM4 that will ship in the kiosk, Android 13 on the Samsung Galaxy A54 the frontline staff carry, iPadOS 17 on the iPad mini 6. Do not pilot on a developer laptop; the workflow on a developer laptop is not the workflow in production.
4. Step 4
   Exercise failure modes that will happen in the field: low-battery state (handheld drops from 100% to 10% during shift); long USB cable runs (desktop reader on a 3-4 metre active USB extender); reader firmware update mid-pilot (Impinj RShell, Zebra 123RFID Desktop, HID OMNIKEY workbench); driver reinstall after a Windows Feature Update; Bluetooth reconnect after phone sleep. These are the failures that generate post-deployment tickets; expose them now.
5. Step 5
   SDK-integration checkpoint with concrete targets: the chosen reader's SDK should integrate with the production codebase in 2-10 developer-days for a straightforward language/version match, and 15-25 developer-days for a language-bridge integration (Java SDK into .NET, Python wrapper around C SDK). If SDK work dominates the integration timeline and no alternative reader is cheaper on integration, change the reader, not the software architecture.
6. Step 6
   Measure read reliability as a distribution, not an average: record the 50th, 90th and 99th percentile read time and the 99th percentile failure rate. A reader with 99% average reliability but a 5% 99th-percentile failure rate causes one failure per 20 taps at the tail. Unacceptable for a guest-facing hotel front desk but fine for a back-office audit tool. The average hides what matters.
7. Step 7
   Exit criteria defined upfront: (1) one reader meets the functional spec, (2) reads within latency budget at the 90th percentile, (3) integrates with production software inside a pre-set SDK-integration budget in developer-days, (4) fits the capital budget per unit and the TCO budget over 3 years. If no reader passes all four, revise the requirement (usually loosening the latency or rigidity targets) rather than stretching the pilot to force a pass.
8. Step 8
   Document the not-chosen readers and why, not just the winner. The candidate that failed on SDK integration today may become the right choice in 18 months when a different product line inherits the codebase; institutional memory about why a reader was rejected matters for the next procurement round. A two-page decision record (ADR format) saves months of re-evaluation later.
