PVC vs Wood vs PLA Hotel Key Cards

Quick comparison

The three materials in depth

The material's physical construction shapes everything downstream. Print, chip encapsulation, durability, and supply lead time all follow from the substrate choice.

• PVC construction: two 0.38 mm PVC sheets laminated around a 0.10-0.15 mm thick PET inlay carrying the chip and antenna. The laminate is heat-pressed at 150-160°C for 15-25 minutes, producing a finished 0.76 mm card that meets ISO 7810 CR80 tolerance. This is the default substrate for every card printer on the market and every hotel lock encoder. Variants include matte finish, glossy finish, frosted, and color-core PVC (colored laminate layer visible at card edges).

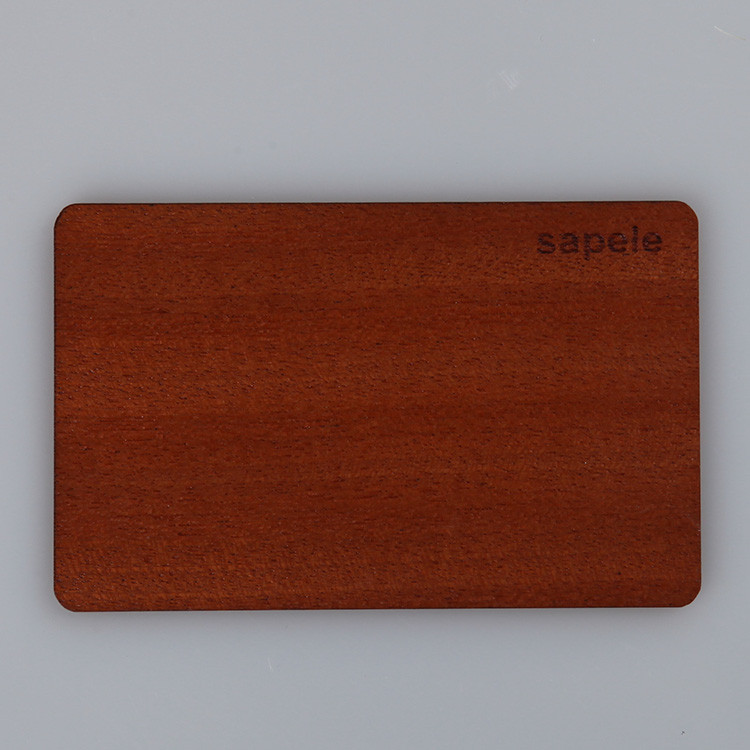

• Wood construction: the chip inlay is pre-routed into a cavity on the back of a surface veneer (typically 0.3-0.5 mm thick), then the back is closed with a second wood layer or a thin PET backing. Because wood is not perfectly flat and has grain variance, thickness tolerance sits at ± 0.1 mm vs ISO's ± 0.08 mm — some older lock encoders reject wood cards at the swipe path, so compatibility testing is not optional. Common woods: FSC-certified birch (cream-white surface, fine grain), bamboo composite (greener tone, uniform grain, renewable), walnut (dark brown, premium feel, pricier). Cherry and maple are also in use at boutique properties.
• PLA construction: PLA is polylactic acid, a bio-based thermoplastic made from fermented plant starch (corn, sugarcane, cassava). The card laminate mimics PVC construction with a chip inlay sandwich, but the sheet itself is PLA instead of PVC. Dimensional properties match ISO 7810 CR80 within tolerance. Mechanical properties are close to PVC. Slightly lower impact resistance, slightly higher thermal sensitivity (softens at ~60°C vs PVC's ~80°C, so cards left in hot cars can warp). Most PLA suppliers offer blends with PBS or PHA that improve thermal tolerance at a small carbon-footprint cost.

Print and personalization compatibility

The print workflow is where the material decision interacts most directly with the hotel's existing card-issuance infrastructure.

• PVC thermal retransfer: Fargo HDP5000 / HDP6600, Zebra ZXP Series 9, Evolis Avansia, and Matica XID all accept PVC out of the box. Resolution is 300 dpi (600 dpi on premium models), YMCKO or YMCKK ribbon, throughput 100-150 cards/hour. Print is edge-to-edge with no bleed compromise.
• PVC direct-to-card: Zebra ZXP Series 7, Fargo DTC4500e, Evolis Primacy 2 run DTC at lower cost per print but with a ~3-5 mm print margin (no true edge-to-edge). Lower-volume and lower-budget properties sometimes run DTC for hotel cards, but the print margin is a visible brand constraint.
• Wood laser engraving: a 30-50 W CO2 laser engrave produces monochrome text, logo, and QR-like artwork burned into the wood surface. Non-removable, premium-feel. Cannot do full-color photography. Throughput is 30-60 cards/hour on a typical hospitality-scale laser engraver (Epilog, Trotec, Universal).
• Wood UV flatbed printing: a UV flatbed printer (Mimaki UJF series, Roland VersaUV) can produce full-color photographic output on a wood surface at 600-1200 dpi. Higher per-card cost than thermal retransfer on PVC but visually identical to print-on-paper in quality. Most hotel properties running wood cards outsource UV flatbed printing to a specialty print shop rather than in-housing the equipment.
• PLA thermal retransfer: broadly compatible with PVC-grade thermal retransfer printers, with the caveats that ribbon wear is 5-15% higher and print density may need to be dialed up one tick on some printer models. Every serious PLA supplier publishes a compatibility matrix per printer model; review before committing to a chain-wide standard.
• Premium finishes across all three: spot UV (clear gloss over specific print areas), embossing (raised text, PVC and wood only), foil stamping (gold/silver heat-transfer, PVC and wood), and matte lamination are all available at additional cost and typically 1-2 week added lead time.

Chip encapsulation and durability

A PVC card, a wood card, and a PLA card with the same chip family will read differently at the lock because the dielectric environment around the antenna changes.

• PVC dielectric behavior: the PVC laminate has a dielectric constant around 3.0-3.5, which is the reference environment every 13.56 MHz inlay is tuned for. Read range at the lock is the baseline. Typically 25-45 mm.
• Wood dielectric behavior: wood dielectric varies with moisture content (6-12% RH-equilibrated) and grain orientation. This produces 5-15% read-range variance between cards from the same batch, and up to 20-30% variance across seasons in non-climate-controlled environments. In practice this means wood cards work fine at hotel door readers tuned for close-tap use (typical lock read distance), but less well at turnstile-style long-range readers. Suppliers that specialize in wood cards pre-tune the inlay for the specific wood substrate to narrow this variance.
• PLA dielectric behavior: PLA dielectric is close to PVC (≈3.0), so read range is nearly indistinguishable from PVC in field use. This makes PLA a straight drop-in replacement from a lock-read perspective.
• Mechanical durability: PVC laminated cards survive 10,000-20,000 flex cycles and 3-5 year nominal life in dry indoor use. Wood cards have lower flex tolerance (3,000-6,000 cycles) because the veneer can crack. But they gain a premium hand feel that extends perceived guest-stay value. PLA is comparable to PVC in flex (10,000-15,000 cycles) with the thermal caveat noted above.
• Water and humidity: PVC and PLA handle light humidity well (laminated edges resist moisture ingress). Wood absorbs ambient moisture and may swell 0.2-0.5% in high-humidity environments. Not a functional problem but a cosmetic one, especially for cards stored in reception desks overnight in coastal or tropical properties.

Sustainability accounting — how to talk about it credibly

Sustainability messaging is a legitimate reason to choose wood or PLA, but it only holds up if the property can defend the accounting.

• PVC carbon footprint (cradle-to-gate) is roughly 1.8 kg CO2e per kg material, and PVC contains chlorine-based monomers that raise end-of-life concerns (PVC is not easily recycled in most municipal streams; hotel card end-of-life is usually landfill or incineration with scrubber controls). This is the baseline sustainability story that wood and PLA are positioned against.
• Wood carbon footprint is 0.6-0.9 kg CO2e per kg for FSC-certified birch sourced regionally, and bamboo composite can reach 0.4-0.6 kg CO2e per kg because bamboo is a fast-growing grass (4-7 year harvest cycle vs 20-40 years for hardwoods). FSC chain-of-custody certification is the credibility anchor. Without FSC documentation, the sustainability claim is weak.
• PLA carbon footprint is 0.5-0.8 kg CO2e per kg for corn-based PLA and 0.4-0.6 for sugarcane-based. The caveat is end-of-life: PLA is industrially compostable under ASTM D6400, but only ~0.5% of US waste streams currently process industrial compost. In a landfill, PLA biodegrades very slowly. An honest sustainability story frames this. 'lower upstream carbon, similar end-of-life to PVC unless the property operates a composting program'.
• Inlay and chip: the RFID chip and antenna inlay is a PET substrate with copper or aluminum antenna traces and a silicon die. This component is identical across all three card materials and contributes ~0.4 g per card of non-separable composite waste. Some suppliers now offer paper-substrate inlays that improve end-of-life separability. If sustainability is a real goal, the inlay substrate is the second lever after the card body material.
• Property-level messaging: the defensible claim is the per-card material delta, not a zero-carbon claim. A wood card at 0.7 kg CO2e/kg × 4 g card = 2.8 g CO2e saved per card vs PVC. At 500 properties × 120 rooms × 4 cards/room/year reissue = 240,000 cards/year × 2.8 g = 672 kg CO2e/year saved. This is a real number to report. But it is small in absolute terms vs a property's total carbon footprint, so hotel programs that lean on card-material sustainability as a headline message usually pair it with larger infrastructure changes (HVAC, laundry, F&B sourcing) to make the messaging credible.

Unit economics and MOQ across a chain scenario

The economics of a chain-wide material upgrade illustrate the trade-off cleanly.

• Chain scenario: 500 properties × 120 rooms × 4 cards per room × 40% reissue rate = 96,000 cards/year at steady state, or 240,000 if the property holds full 4×stock buffer.
• PVC baseline at $0.22 per card × 240,000 = $52,800 annual card stock spend (or $21,120 at just the reissue rate).
• PLA at $0.45 × 240,000 = $108,000, an incremental $55,200 annually over PVC. The delta is real but small relative to total property operating spend. Suitable for brand positioning programs at upper-midscale and upscale tiers.
• Wood at $1.05 × 240,000 = $252,000, an incremental $199,200 annually over PVC. The premium is large enough that most chains deploy wood cards only at flagship or showcase properties (50-80 locations out of 500), not chain-wide.
• MOQ and lead time considerations: PVC supports low MOQ (500) and 3-5 week lead times; PLA requires higher MOQ (1,000-3,000) because supplier feedstock runs are less frequent; wood cards often have lower MOQ (300) because they are treated as a specialty SKU with slower supplier throughput. Chain procurement usually consolidates to quarterly orders across all three materials where they are in use.

Property fit scenarios and sampling guidance

A quick map of which material fits which property context.

• Mid-scale chain, limited-service (Holiday Inn Express, Hampton, Courtyard): PVC chain-wide. No material premium justified by guest-stay context; card is room-access utility with minimal brand canvas.
• Upper-midscale chain (Marriott, Hilton Garden Inn, Hyatt Place): PVC baseline, with PLA as a sustainability-positioned alternative at specific property clusters that want to lean into eco messaging. Wood is usually not a match.
• Upscale / upper-upscale (Marriott Bonvoy upper tiers, Hilton, Hyatt Regency, Kimpton, Renaissance): PVC still typical, PLA for sustainability-forward sub-brands, wood at specific boutique flagship properties.
• Luxury / premium independent (Aman, Rosewood, Soho House, 1 Hotels, Six Senses): wood is a strong brand match, often paired with premium finish (laser-engraved logo, matte surface). PLA is a secondary option for eco-forward sub-brands like 1 Hotels or Six Senses.
• Boutique independent (design-led city hotels, lifestyle boutiques): wood with UV flatbed printed artwork, or premium PVC with embossing / foil stamp / custom color core. Material becomes a brand signal rather than a utility choice.
• Resort and all-inclusive: usually PVC for room cards (cost and lock compatibility matter more than material differentiation), with the brand story carried by the silicone wristband rather than the room card.
• Sampling protocol: start with PVC baseline (most encoder compatible, fastest to validate). If wood or PLA is on the shortlist, order a pre-series of 50-100 cards per candidate material per chip family, validate through the full check-in + encoding + lock-read + pocket-wear + 72-hour guest-use cycle before committing to the first production run.
