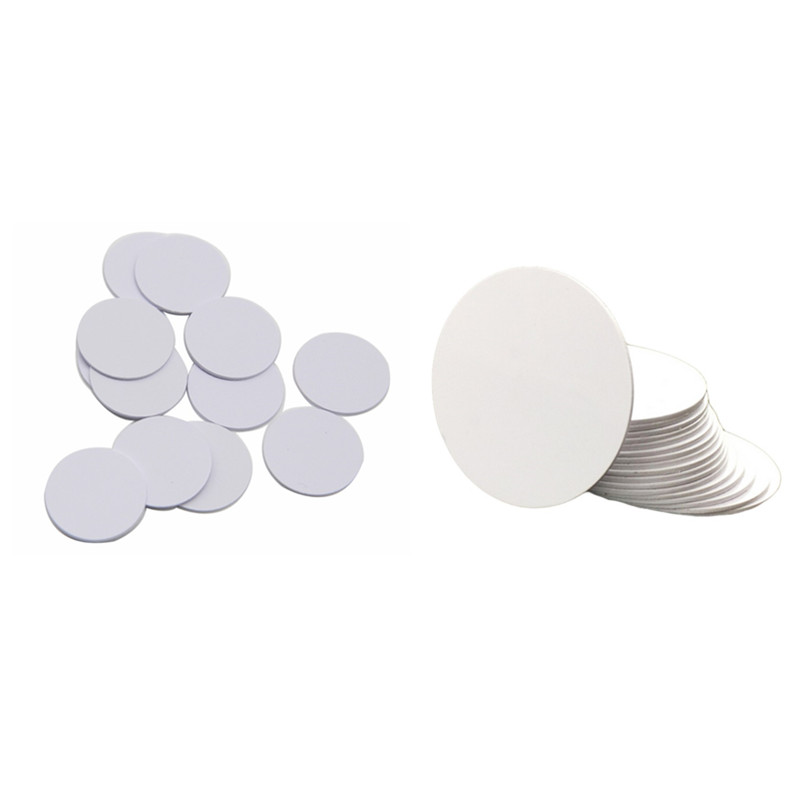

RFID Coin Tag / Token

Why the disc-format token earns its place in the catalogue alongside the coin-keyfob

• ±0.1 mmDiameter tolerance at 13-50 mm envelope
• 1.0 m × 1,000 cycABS drop-test per IEC 60068-2-32 Ea
• AES-128DESFire EV3 stored-value posture
• IP67Ultrasonic-welded ABS housing

• No-hole disc vs key-ring coin — the token is designed to be dropped into a mechanical coin-slot, dispenser barrel or arcade collection bucket, recirculate through a bucket-drop cycle, and be collected and redistributed; the keyring-holed rfid-coin-keyfob is a different form factor anchored to the user's keychain.
• ±0.1 mm diameter tolerance is the make-or-break spec — a laundry-token supplier that delivers a 20 mm ± 0.5 mm batch against a 19 mm coin-acceptor causes 100 % jamming; Proud Tek dispatches a 5-unit physical sample against the operator's specific acceptor dimension before freezing the production run.
• 1.0 m drop onto steel plate at 1,000 cycles per IEC 60068-2-32 Ea is the gaming / arcade fatigue bar; ABS shells that crack at 500 cycles expose the chip and generate read-failure tickets that are almost always mistaken for chip faults, not housing faults.
• Casino-chip audit — per-chip laser-engraved sequential numbering + NTAG 424 DNA SUN / DESFire EV3 AES-128 together enable a gaming-commission-grade reconciliation at scale (100,000 chips walked across an RFID reader in under 4 hours).
• Stored-value programmes must specify MIFARE DESFire EV3 AES-128 or NTAG 424 DNA SUN — CRYPTO-1 MIFARE Classic is trivially counterfeited with off-the-shelf tooling per Garcia et al. 2008, and any monetary-value rollout on Classic carries a direct counterfeit-token fraud liability.

LF vs HF — picking the chip from the dispenser, not the catalogue

• LF 125 kHz (EM4100 read-only, EM4305 re-writable, T5577 multi-protocol) — for laundry / locker / legacy HID-Prox dispenser reader estates; 50-60 % of North-American commercial-laundry machines still use LF readers per industry benchmarks.
• HF 13.56 MHz (NTAG 213 / 215 / 216) — for NFC-Forum phone-tappable tokens; loyalty / promotional / social-sharing envelopes where the end user taps the token to their phone for URL / vCard / points-credit.
• HF 13.56 MHz (MIFARE Plus SE / DESFire EV3) — for AES-128 access-control token credentials; boutique-fitness locker / members-club / corporate-parking envelopes.
• HF 13.56 MHz (NTAG 424 DNA) — for tap-authenticated / anti-counterfeit / gaming-chip envelopes with SUN + CMAC replay-protection per NIST SP 800-38B.
• Chip-frequency mismatch against the dispenser is the single biggest order-failure mode — Proud Tek cross-references the dispenser brand + model against the compatibility matrix and confirms the chip in the order acknowledgement before tooling.

Where RFID coin tags earn their place in operator programmes

• University / multi-family housing laundry — 3,000-50,000 LF or HF tokens across 15-500 machines; per-token UID lookup against a student-ID or rent-ledger account; zero cash-handling at the laundry machine.
• Gaming entertainment / arcade / amusement park — HF MIFARE Classic 1K (low-security arcade envelope) or HF NTAG 213 (phone-tappable promotional tokens) across 5,000-500,000 tokens per venue.
• Casino — NTAG 424 DNA SUN + laser-engraved sequential chip number across 40 mm epoxy-dome or ABS disc; per-chip gaming-commission audit; anti-counterfeit posture versus the CRYPTO-1-attackable MIFARE Classic alternative.
• Locker systems — 20 / 25 mm ABS token as locker key in gym / pool / changing-room venues; DESFire EV3 AES-128 access credential; lost-token revocation at the PACS head-end.
• Parking — 30 mm ABS token as prepaid parking credit dispensed by kiosk; DESFire EV3 stored-value file; backend-authoritative balance with tamper-evident counter for reconciliation.
• Promotional giveaway / collectible — 40 / 50 mm epoxy-dome disc with NTAG 213 URL to the campaign landing page; limited-edition laser-engraved serial number becomes the keepsake.

How to roll out an RFID coin-tag programme without dimensional or chip-security surprises

1. Week 1 — dispenser spec + chip matrix + 5-unit sample

   Freeze the coin-acceptor / dispenser / bucket dimensional spec (diameter ± 0.1 mm, thickness matched to the mechanical profile), the chip against the reader-frequency matrix (LF 125 kHz EM4305 / T5577 vs HF 13.56 MHz NTAG / DESFire EV3 / NTAG 424 DNA), and dispatch a 5-unit physical sample for operator fit-validation before tooling.

2. Weeks 2-3 — drop-test + encoding-bench validation

   Run the IEC 60068-2-32 Ea 1.0 m drop at 1,000 cycles on 20-unit housing samples; encode the first pilot batch on the bench; validate reader-read rate (100 % UID + 99.5 %+ NDEF / DESFire session authentication) across the dispenser fleet.

3. Weeks 4-6 — production + QC finish-quality audit

   Run the 500-50,000-piece production batch; audit 1 % QC sample against diameter tolerance (±0.1 mm), drop survival (1.0 m × 1,000 cycles), laser-engrave legibility (abrasion-resistance test), and NFC / RFID read rate; reject any batch that fails the finish-quality bar.

4. Weeks 7-8 — encoding + logistics + backend wiring

   Pre-encode per-token UID / NDEF URL / DESFire AES-128 session credentials; polybag + bulk-pack per rollout channel; wire the backend authoritative balance + revocation workflow + per-chip audit database; ship to the venue fleet.

5. Month 3+ — audit cadence + casino-commission + sustainability reporting

   Operating context extends to multi-family-laundry, gaming-arcade, casino-table-chip, municipal-parking, locker-credit and loyalty-promotional RFID-coin-token programmes — review periodicity, refresh windows and audit obligations vary by vertical and are documented per estate. wire issue / revoke / loss / retirement events into the operator backend audit log; layer the gaming-commission chip-reconciliation report, RoHS 3 + REACH SVHC + California Prop 65 + EN 71-3 evidence pack, and CDP / Higg Index sustainability reporting on top.

• Send the specific coin-acceptor / dispenser / bucket brand + model + dimensional spec to the RFQ — diameter ± 0.1 mm and thickness to match the mechanical profile is the make-or-break spec; a 5-unit physical-sample batch ships before the full production run.
• Freeze the chip against the dispenser-reader frequency before artwork — LF 125 kHz vs HF 13.56 MHz vs which HF chip (NTAG 213 / 424 DNA / DESFire EV3 / Classic) is decided from the reader end, not the token catalogue.
• For any monetary-value programme (parking credit / stored-value locker / casino chip) specify MIFARE DESFire EV3 or NTAG 424 DNA from the start — CRYPTO-1 MIFARE Classic is a documented counterfeit-fraud liability and migration away is explicit per NXP and BSI guidance.
• Laser-engraved sequential numbering per chip is standard (no MOQ upcharge) — this enables per-chip audit reconciliation, lost-chip loss accounting, and gaming-commission-grade chip-to-database matching at scale.
• Accelerated drop / tumble validation — specify the IEC 60068-2-32 Ea 1.0 m × 1,000-cycle requirement on the RFQ; housing SKUs that fail at 500 cycles generate misdiagnosed chip-failure tickets and erode programme economics.
